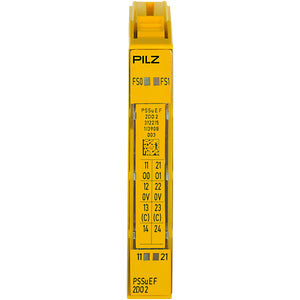

PILZ PSSu E F 2DO 2

Write a review
Rs. 0.00

Technical Data
Electrical Data
Terminal V ind. loads offU2 - 50 V
Permitted loads
  • Resistive
  • Inductive
  • Capacitive
Semiconductor outputs
DC voltage at output24 V DC
Potential isolation S/C OYes
S/C output short circuit proofYes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature0 - 60 Ā°C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r.h. at 40 Ā°C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...
  • EN 12015
  • EN 12016
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61131-2 (Zone B)
Vibration to standard ...EN 60068-2-6
Acc. shock to standard1150 m/sĀ²
Acc. shock to standard2
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Protection type, mounting
Protection type, housing
Terminal protection type
Mechanical Data
Housing material lower sectionPC
Housing material front platePC
Housing material codePA
Terminal stylePlug-in
Height dimension76 mm
Width dimension12.6 mm
Depth dimension60.2 mm
Net weight35 g
Gross weight44 g
Name of coding elementF
Colour of coding elementYellow
