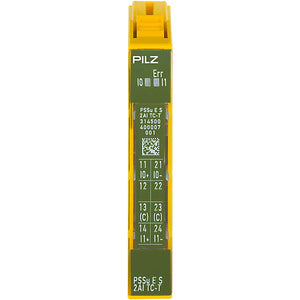

PILZ PSSu E S 2AI TC-T

SUA00002888

Technical Data
Analog Inputs
Number of analogue inputs 2
Type of analogue inputs Thermocouple
Signal range analog input
  • Type N
  • Type R
  • Type B
  • Type S
  • Type T
  • Type E
  • Type J
  • Type K
  • Voltage
Analog input signal type 1 Type R
Analog input Signal range 1 -50 - 1768 °C
Analog input signal type 2 Type S
Analog input Signal range 2 -50 - 1768 °C
Analog input signal type 3 Type B
Analog input Signal range 3 600 - 1820 °C
Analog input signal type 4 Type J
Analog input Signal range 4 -210 - 1200 °C
Analog input signal type 5 Type T
Analog input Signal range 5 -200 - 400 °C
Analog input signal type 6 Type E
Analog input Signal range 6 -200 - 1000 °C
Analog input signal type 7 Type K
Analog input Signal range 7 -200 - 1372 °C
Analog input signal type 8 Type N
Analog input Signal range 8 -200 - 1300 °C
Analog input signal type 9 Voltage
Analog input Signal range 9 +/-30 mV
Analog input signal type 10 Voltage
Analog input Signal range 10 +/-60 mV
Analog input signal type 11 Voltage
Analog input Signal range 11 +/-120 mV
Type of input filter Digital filter
Damping of input filter 1 90 dB (60 Hz)
Value least signif. bit U-Me
  • 2 µV (+/-60 mV)
  • 4 µV (+/-120 mV)
  • 1 µV (+/-30 mV)
Conversion method analog i/p Delta sigma
Potential isolation analog inp. Yes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature -40 - 70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Condensation permitted? Briefly
Perm. operating height ASL 5000 m
EMC to standard ...
  • EN 61131-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Acc. shock to standard 2 25g
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Height dimension 76 mm
Width dimension 12.6 mm
Depth dimension 60.2 mm
Net weight 36 g
Gross weight 44 g
Name of coding element H
Colour of coding element Dark grey
