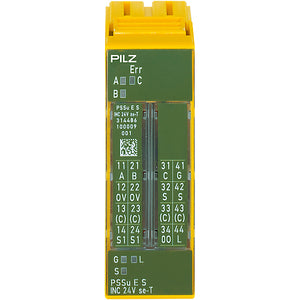

PILZ PSSu E S INC 24V se -T

Write a review
Rs. 0.00

Technical Data
Input Incremental Encoder
Type of inputs incr. enc. Incremental encoder
Signal input A, B and/or C Single-ended (HTL)
Evaluation counter pulse incr.
  • 2x
  • 1x
  • 4x
Pot. isol. incr./per. supply No
Pot. isol. incr./mod.supply Yes
Semiconductor Outputs
DC voltage at output 24 V DC
Voltage Outputs
DC voltage at output 2 24 V DC
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature -40 - 70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
Condensation permitted? Briefly
Perm. operating height ASL 5000 m
EMC to standard ...
  • EN 61000-6-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-6-4
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Broadband noise to EN 60068-2-64
Acc. shock to standard 1 15g
Acc. shock to standard 2 25g
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Terminal style Plug-in
Height dimension 76 mm
Width dimension 25.2 mm
Depth dimension 60.2 mm
Net weight 48 g
Gross weight 57 g
Name of coding element M
Colour of coding element Dark grey
