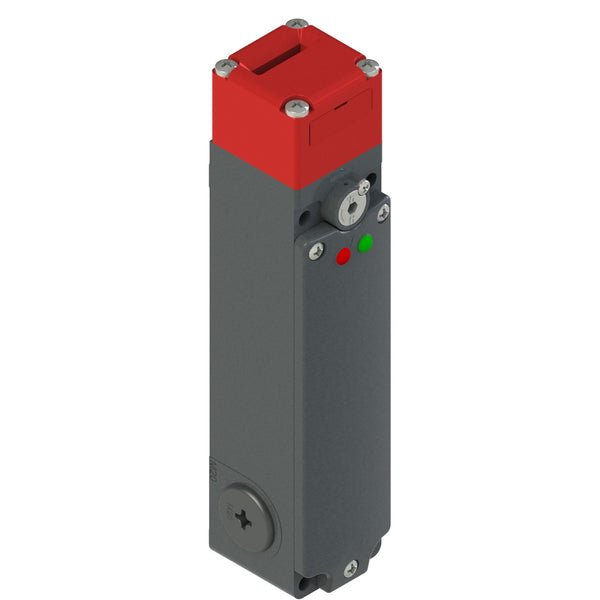

Pizzato FG 60PD1D0B FG series safety switch with separate actuator with lock

AKB000006451

Protection degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1,5 cable entries
Contact block 3NC moved by actuator and 1NC moved by solenoid
Head Rotating head
Power 24 Vac/dc
LED 1 green LED + 1 red LED freely linkable by user
Actuator Without actuator
Positive opening Yes
