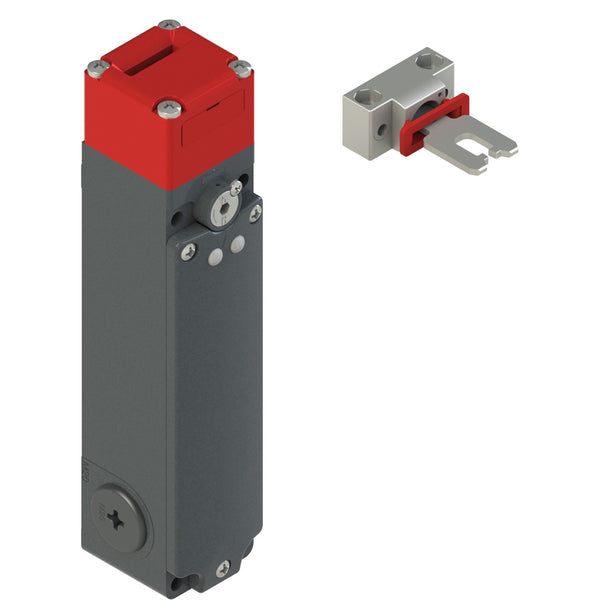

Pizzato FG 60XD1D1Z-F28 FG series safety switch with separate actuator with lock

AKB000006477

Protection degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1,5 cable entries
Contact block 3NC moved by actuator and 1NO moved by solenoid
Head Rotating head
Power 120 Vac/dc
LED Without LED
Actuator Complete with universal actuator VF KEYF28
Positive opening Yes
