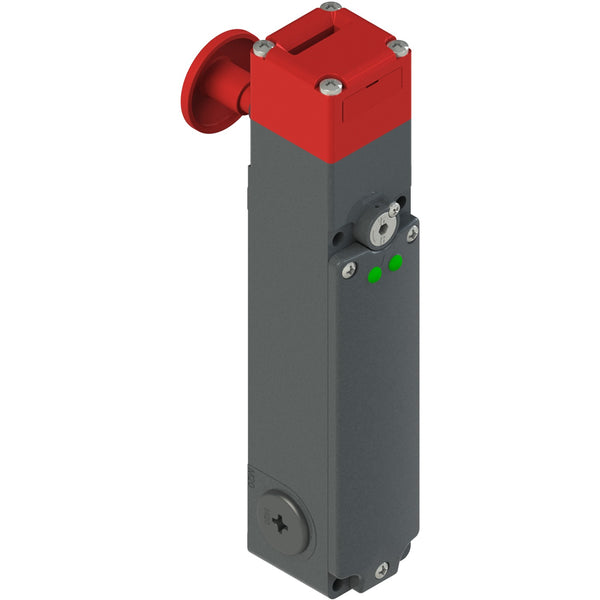

Pizzato FG 61DD7D0A FG series safety switch with separate actuator with lock

AKB000006494

Protection degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1,5 cable entries
Contact block 3NO moved by actuator and 1NC moved by solenoid
Head Rotating head with escape pushbutton
Power 24 Vac/dc
LED 2 green LED switched-on by the solenoid power supply
Actuator Without actuator
Positive opening Yes
