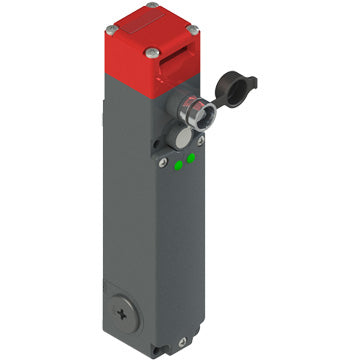

Pizzato FG 61MD5D0A-V70V90 Safety switch for lift door locking

SUA00004140

Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method: D working method, locked actuator with de-energized solenoid
Housing: Metal housing, three M20x1.5 cable entries
Contact block: 1NC moved by actuator and 3NO moved by solenoid
Head: Rotating head with lock auxiliary release device
Power: 24 Vac/dc
LED: 2 green LED switched-on by the solenoid power supply
Actuator: Without actuator
Auxiliary release: Key release with triangular lock and spring return
Positive opening: Yes
