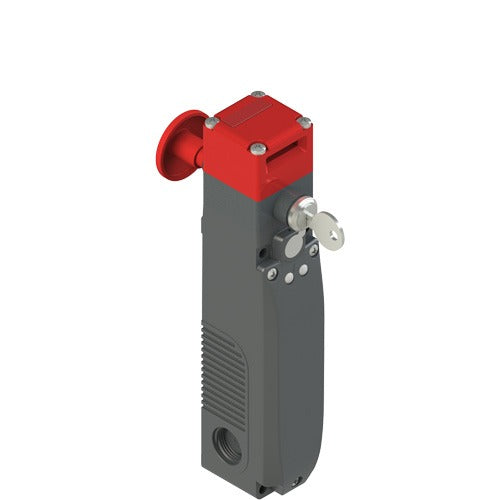

Pizzato FY 60PD6D0A FY series safety switch with separate actuator with lock

AKB000006344

Housing Technopolymer housing, three M20x1.5 cable entries
Contact block 3NC moved by actuator and 1NC moved by solenoid
Head Rotating head with lock auxiliary release device and escape pushbutton
Working method D working method, locked actuator with de-energized solenoid
Power 24 Vac/dc
LED 2 green LED switched-on by the solenoid power supply
Actuator Without actuator
Protection degree IP67 according to EN 60529 and IP69K according to ISO 20653
