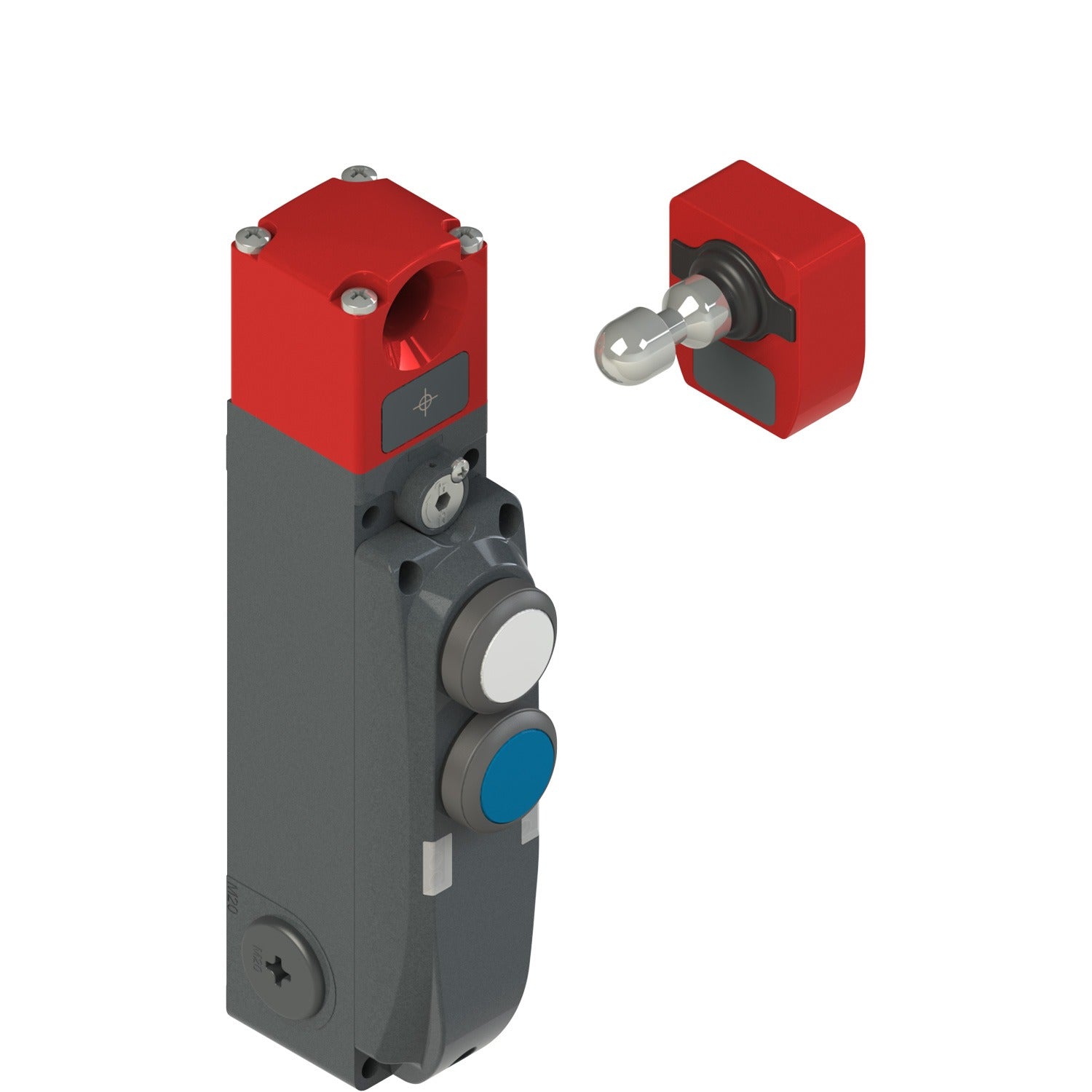

Pizzato NG 2D1D312P-F30 NG series safety switch with lock and integrated control devices, with actuator

AKB000006865

Protection degree IP65 according to EN 60529
Housing Metal housing, three threaded M20x1,5 conduit entries
Head Rotating head
Working method D working method, locked actuator with de-energized solenoid
Inputs and outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 reset input I3
Safety output activation OS Activation mode 1: safety outputs active with actuator inserted and locked
Actuator Complete with universal actuator with low coding level VN NG-F30
Type of connection Without connector
