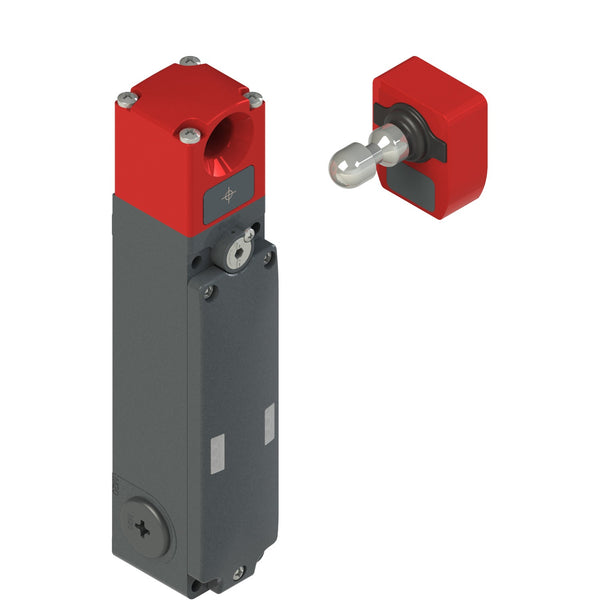

Pizzato NG 2D1D411A-F31 NG series safety switch with lock, with actuator

AKB000006875

Protection degree IP67 according to EN 60529 and IP69K according to ISO 20653
Cover configuration No device
Housing Metal housing, three threaded M20x1,5 conduit entries
Head Rotating head
Working method D working method, locked actuator with de-energized solenoid
Inputs and outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 input I3: actuator programming / reset
Safety output activation OS Activation mode 1: safety outputs active with actuator inserted and locked
Actuator Complete with actuator with high coding level VN NG-F31
Type of connection Without connector
