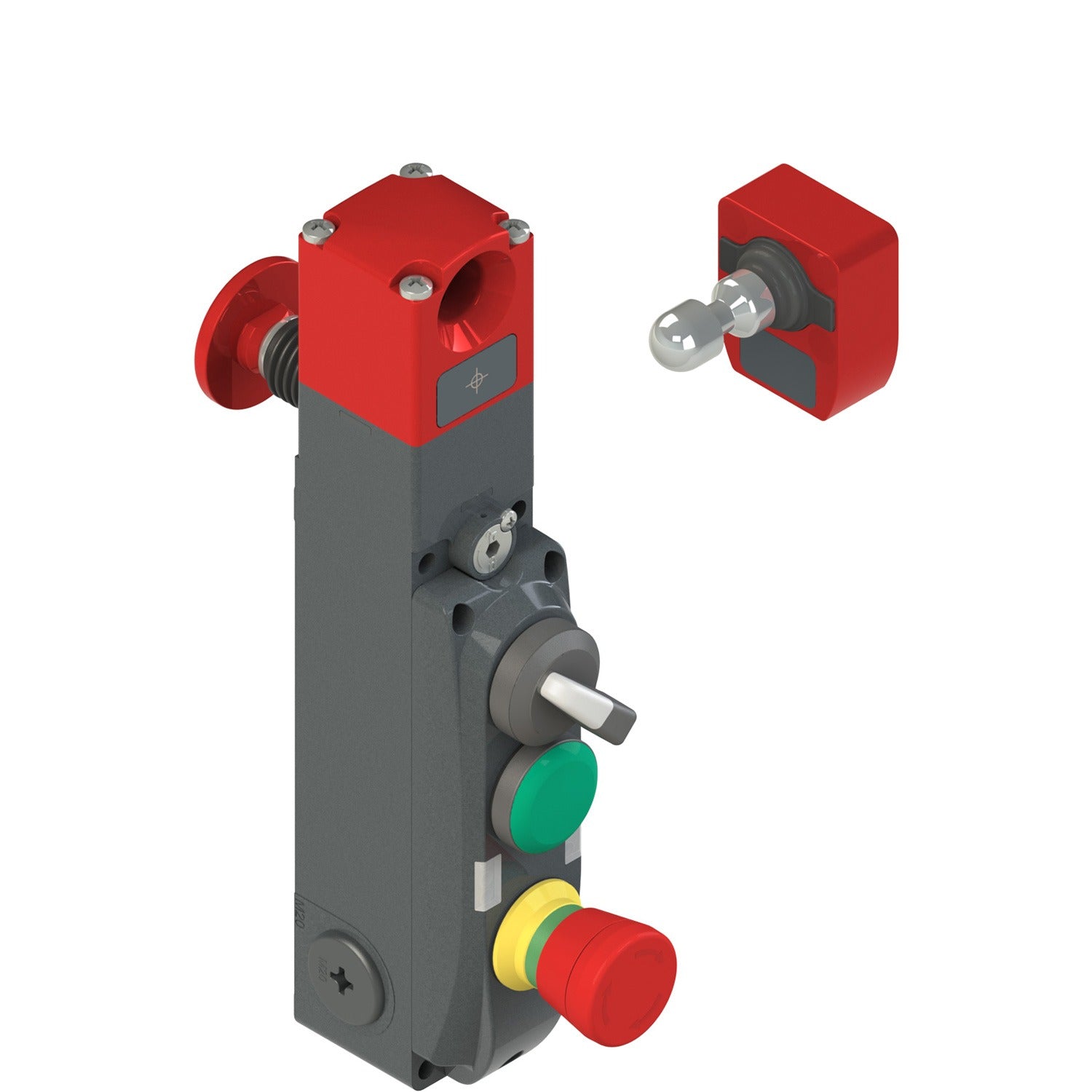

Pizzato NG 2D7D412G-F31 NG series safety switch with lock and integrated control devices, with actuator

AKB000007310

Specification Details
Protection Degree IP65 according to EN 60529
Cover Configuration 3 devices
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with escape pushbutton
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs (IS1-IS2)
2 safety outputs (OS1-OS2)
1 signalling output (O3): actuator inserted
1 signalling output (O4): actuator locked
I4 or IE1-IE2 inputs for solenoid activation
1 input (I3): actuator programming/reset
Safety Output Activation OS Activation mode 1: Safety outputs active with actuator inserted and locked
Actuator Complete with actuator with high coding level VN NG-F31
Type of Connection Without connector
