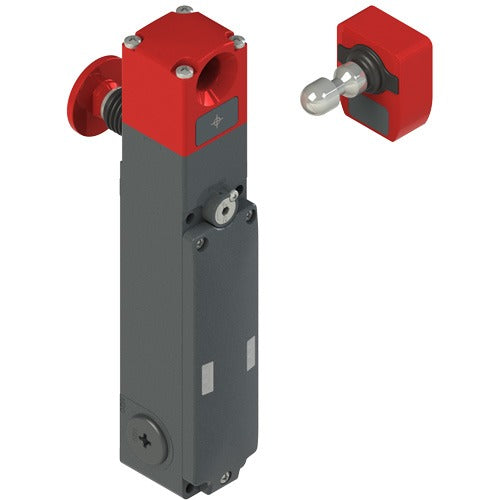

Pizzato NG 2D7D431A-F31 NG series safety switch with lock, with actuator

AKB000007401

Specification Details
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Cover Configuration No device
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with escape pushbutton
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signaling output O3: actuator inserted
1 signaling output O4: actuator locked
I4 or IE1-IE2 inputs for solenoid activation
1 input I3: actuator programming / reset
Safety Output Activation Activation mode 3: a first safety output active with actuator inserted and locked and a second safety output active with actuator inserted
Actuator Complete with actuator with high coding level VN NG-F31
Type of Connection Without connector
