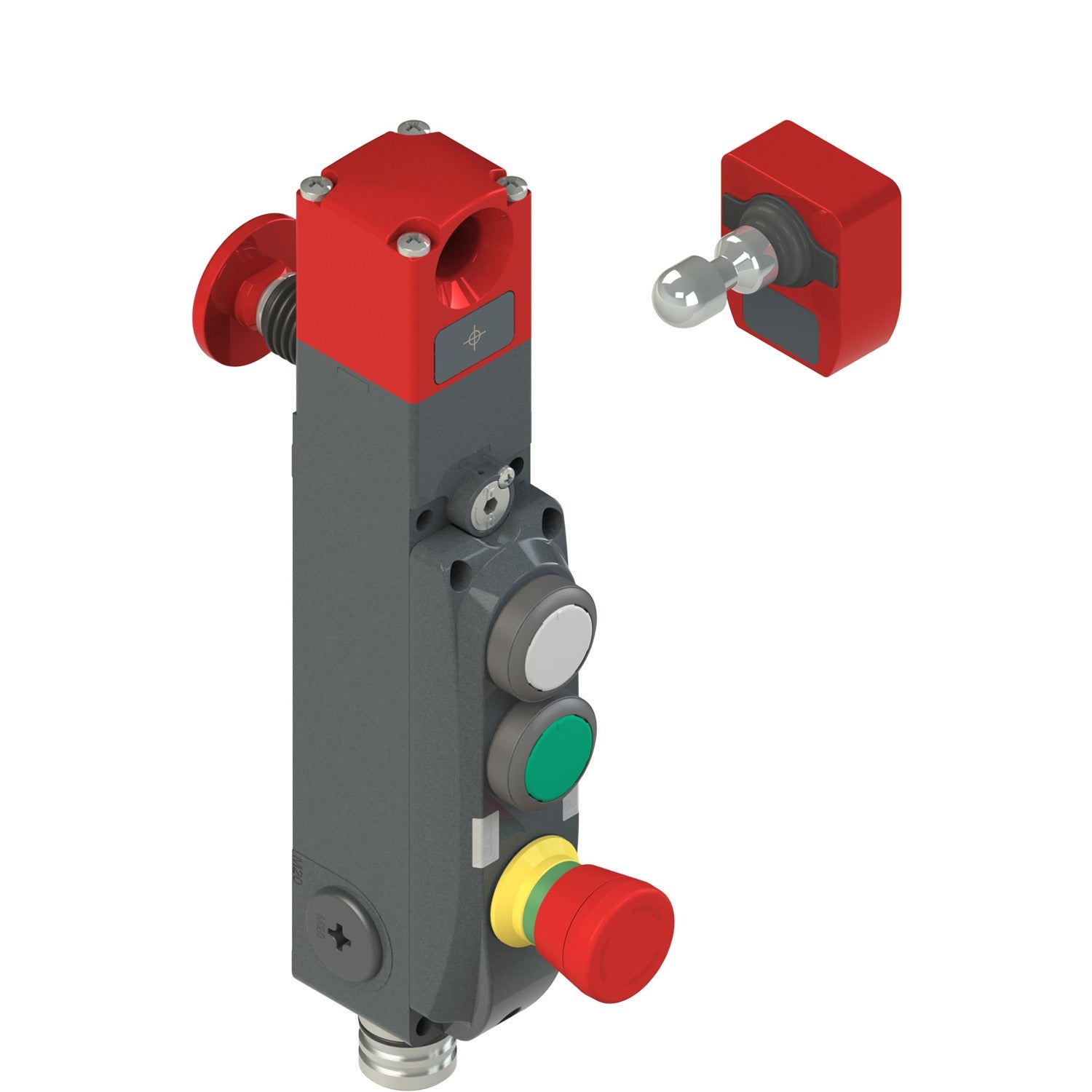

Pizzato NG 2D7D611S-F31K603 NG series safety switch with lock and integrated control devices, with actuator

AKB000007408

Specification Details
Protection Degree IP65 according to EN 60529
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Cover Configuration 3 devices
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with escape pushbutton
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signaling output O3: actuator inserted
1 signaling output FAULT O4
I4 or IE1-IE2 inputs for solenoid activation
1 input I3: actuator programming / reset
Safety Output Activation Activation mode 1: safety outputs active with actuator inserted and locked
Actuator Complete with actuator with high coding level VN NG-F31
Type of Connection M23 connector, 19-pin
