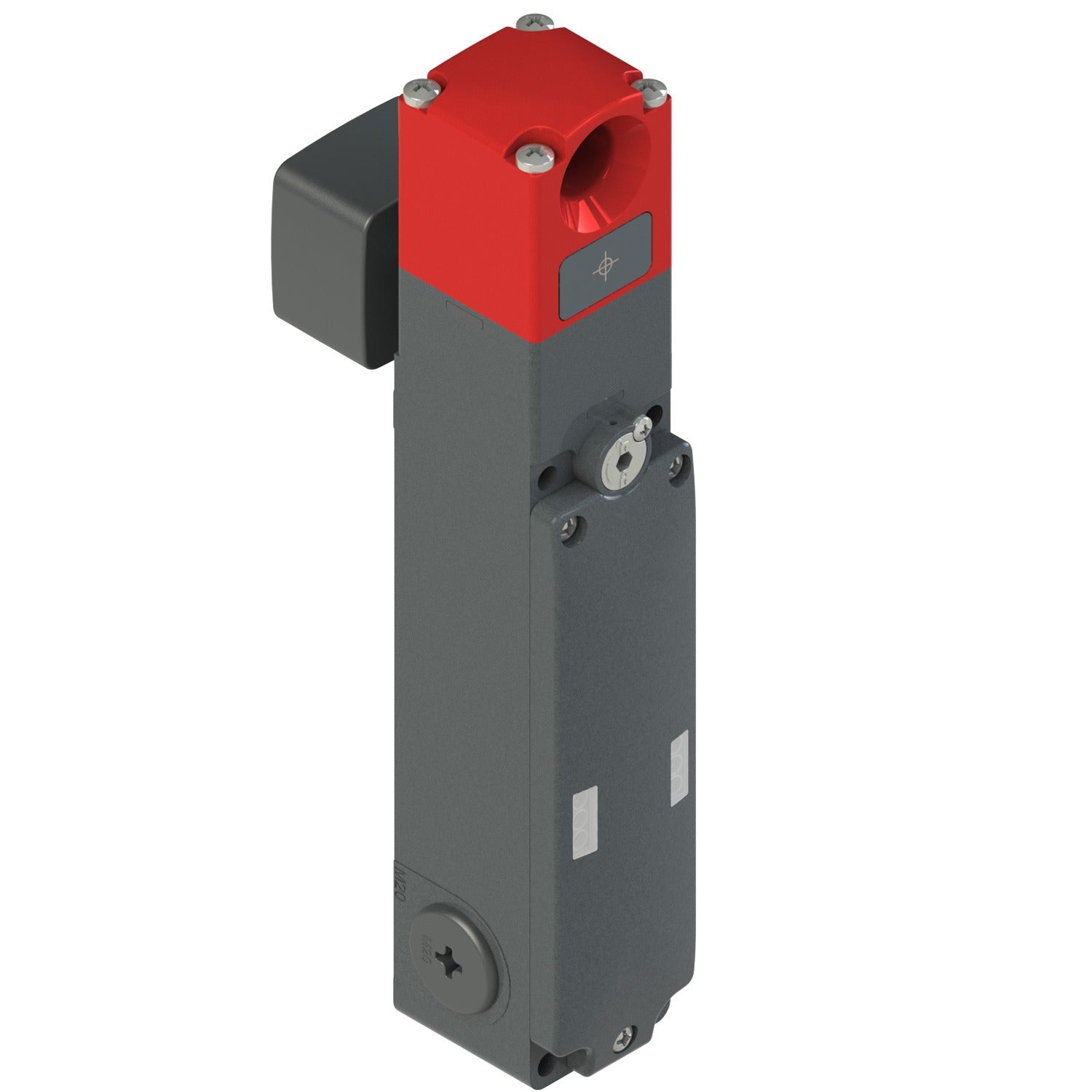

Pizzato NG 2D9D421A NG series safety switch with lock

AKB000007412

Specification Details
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Cover Configuration No device
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with Remote Escape Release
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signaling output O3: actuator inserted
1 signaling output O4: actuator locked
I4 or IE1-IE2 inputs for solenoid activation
1 input I3: actuator programming / reset
Safety Output Activation Activation mode 2: safety outputs active with actuator inserted
Actuator Without actuator
Type of Connection Without connector
