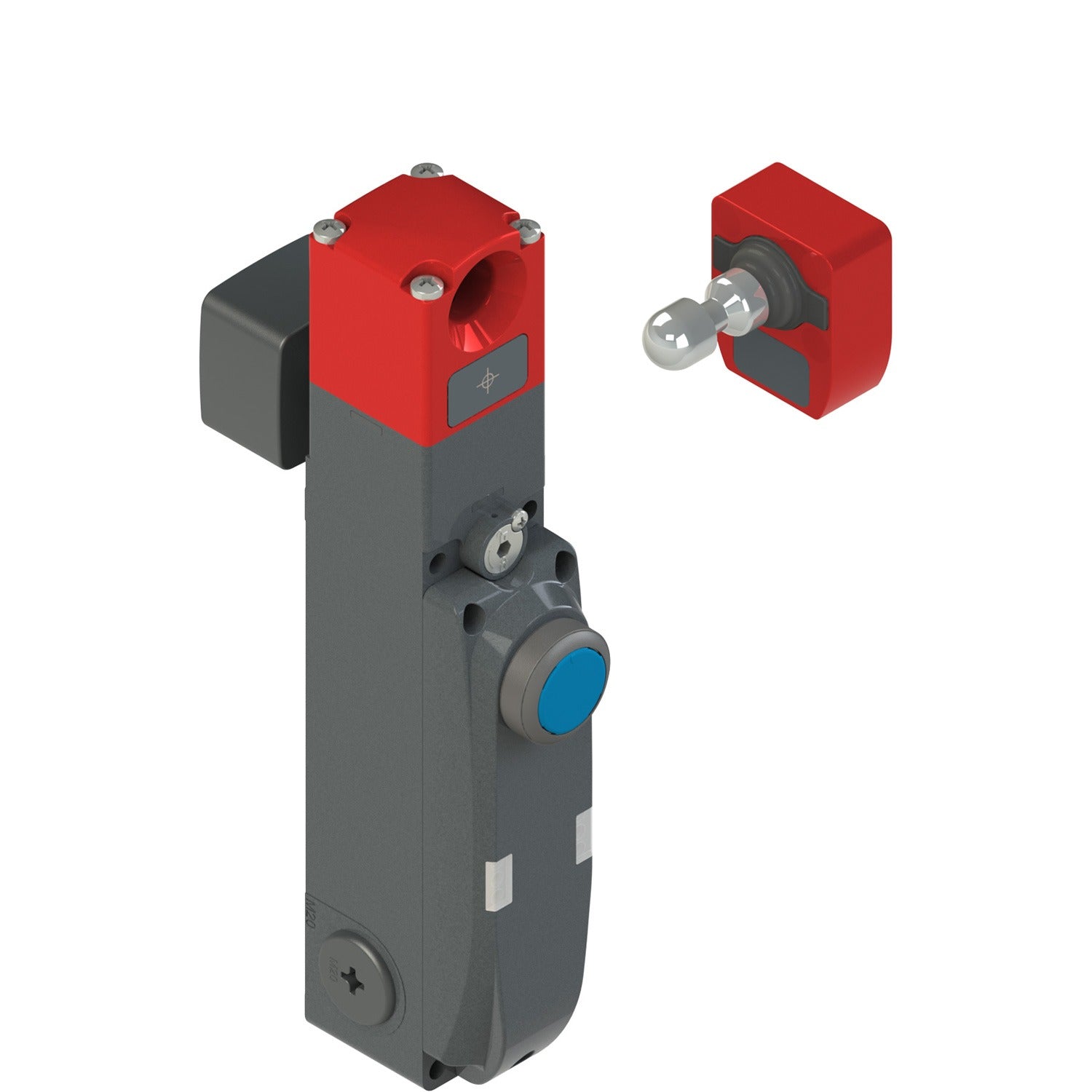

Pizzato NG 2D9D423G-F31 NG series safety switch with lock and integrated control devices, with actuator

AKB000007414

Specification Details
Cover, Position 1 1 pushbutton blue 1NO+1NC
Cover Configuration 1 device
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with Remote Escape Release
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signaling output O3: actuator inserted
1 signaling output O4: actuator locked
I4 or IE1-IE2 inputs for solenoid activation
1 input I3: actuator programming / reset
Safety Output Activation Activation mode 2: safety outputs active with actuator inserted
Actuator Complete with actuator with high coding level VN NG-F31
Type of Connection Without connector
