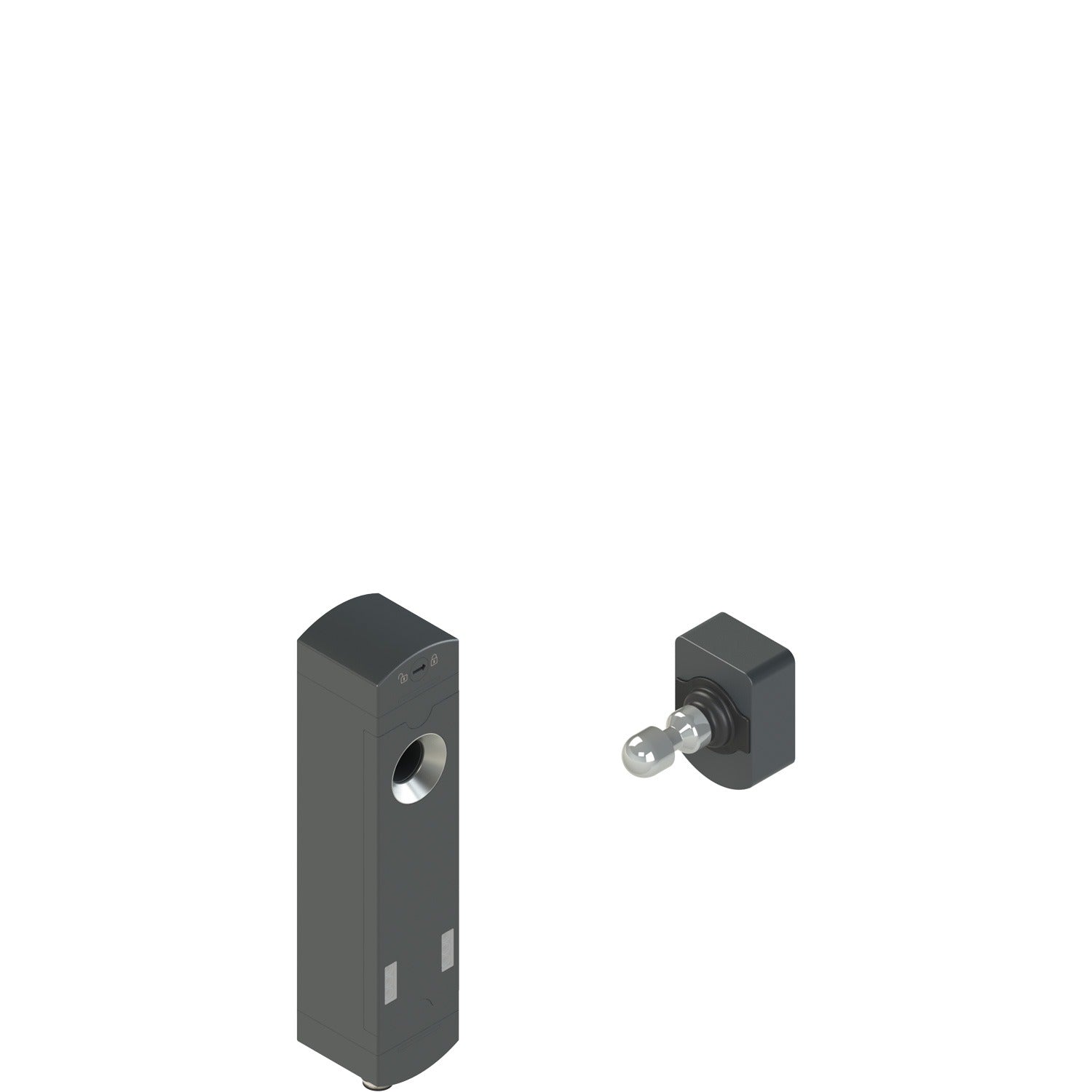

Pizzato NS D4AZ1SPK-F41 NS series safety locking switch, with actuator

AKB000006765

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 solenoid activation inputs IE1-IE2
1 programming / reset input I3
Auxiliary Release with Variable Orientation Front screw release
Output Connection Direction Cable or connector at bottom
Actuator Complete with actuator with high coding level VN NS-F41
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Button Configuration No device
Type of Connection M12 connector, 8-pole, for stand-alone connections
