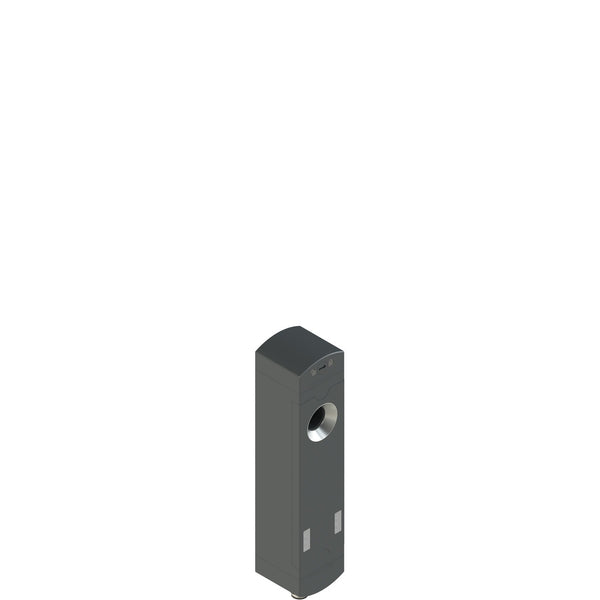

Pizzato NS D4AZ1SPK NS series safety locking switch

AKB000006764

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 solenoid activation inputs IE1-IE2
1 programming / reset input I3
Auxiliary Release with Variable Orientation Front screw release
Output Connection Direction Cable or connector at bottom
Actuator Without actuator
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Button Configuration No device
Type of Connection M12 connector, 8-pole, for stand-alone connections
