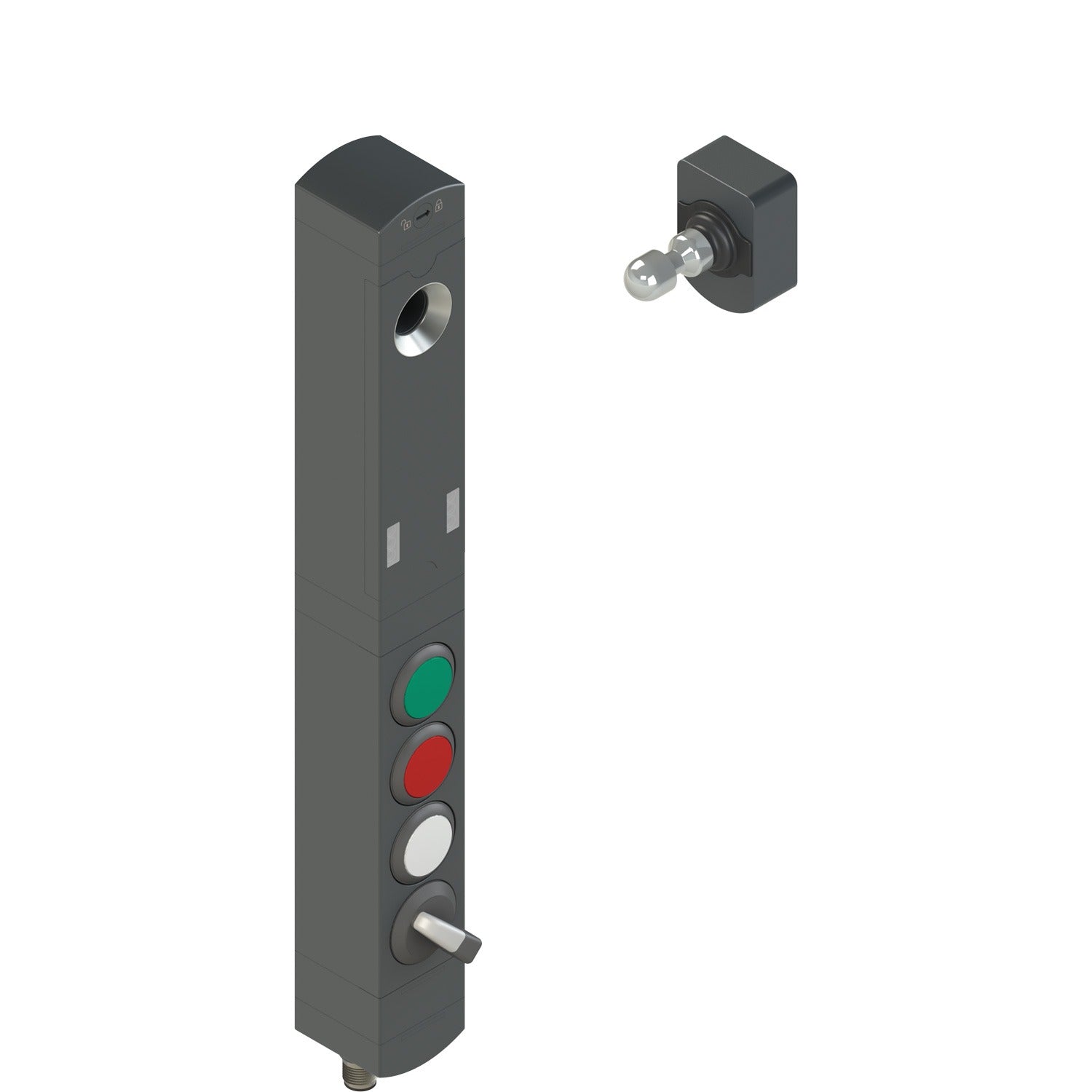

Pizzato NS D4AZ1SRK-F41N004 NS series safety switch with lock and integrated control devices, with actuator

AKB000006768

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 solenoid activation inputs IE1-IE2
1 programming / reset input I3
Auxiliary Release with Variable Orientation Front screw release
Output Connection Direction Cable or connector at bottom
Actuator Complete with actuator with high coding level VN NS-F41
Button Configuration 4 devices
Position 1: 1 pushbutton green 1NO
Position 2: 1 pushbutton red 1NO
Position 3: 1 pushbutton white 1NO
Position 4: 2-position selector switch 1NO
Protection Degree IP65 according to EN 60529
Type of Connection Two M12 connectors (12-pole + 12-pole)
