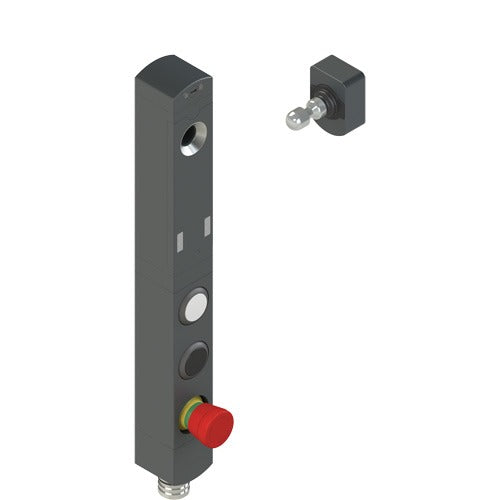

Pizzato NS D4AZ1STK-F41N003 NS series safety switch with lock and integrated control devices, with actuator

AKB000006788

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 solenoid activation inputs IE1-IE2
1 programming / reset input I3
Auxiliary Release with Variable Orientation Front screw release
Output Connection Direction Cable or connector at bottom
Actuator Complete with actuator with high coding level VN NS-F41
Protection Degree IP65 according to EN 60529
Button Configuration 3 devices
Position 1: 1 pushbutton white (1NO)
Position 2: 1 pushbutton black (1NO)
Position 3: 1 red emergency pushbutton, turn to release (2NC)
Type of Connection M23 connector, 19-pole
