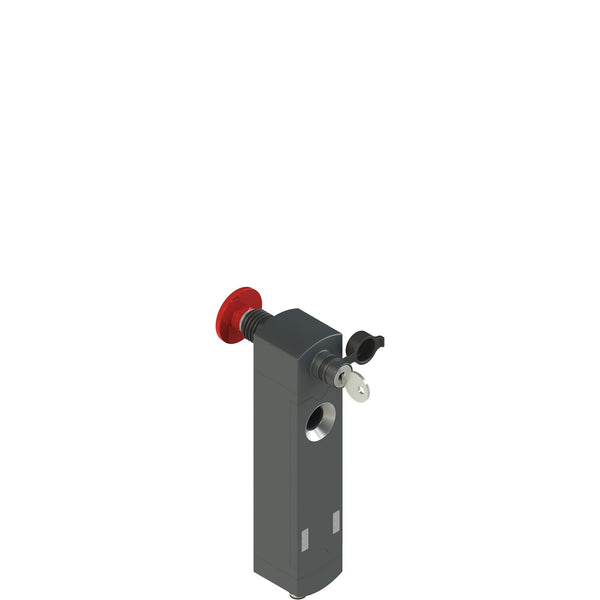

Pizzato NS D4SE1SPK NS series safety locking switch

AKB000006809

Housing: Technopolymer housing
Working method: D working method, locked actuator with de-energized solenoid
Mode 1: OS safety outputs active with locked protection
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
2 solenoid activation inputs IE1-IE2,
1 programming / reset input I3
Output connection direction: Cable or connector at bottom
Actuator: Without actuator
Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
Auxiliary release with variable orientation: Front key release and rear emergency pushbutton
Button configuration: No device
Type of connection: M12 connector, 8-pole, for stand-alone connections
