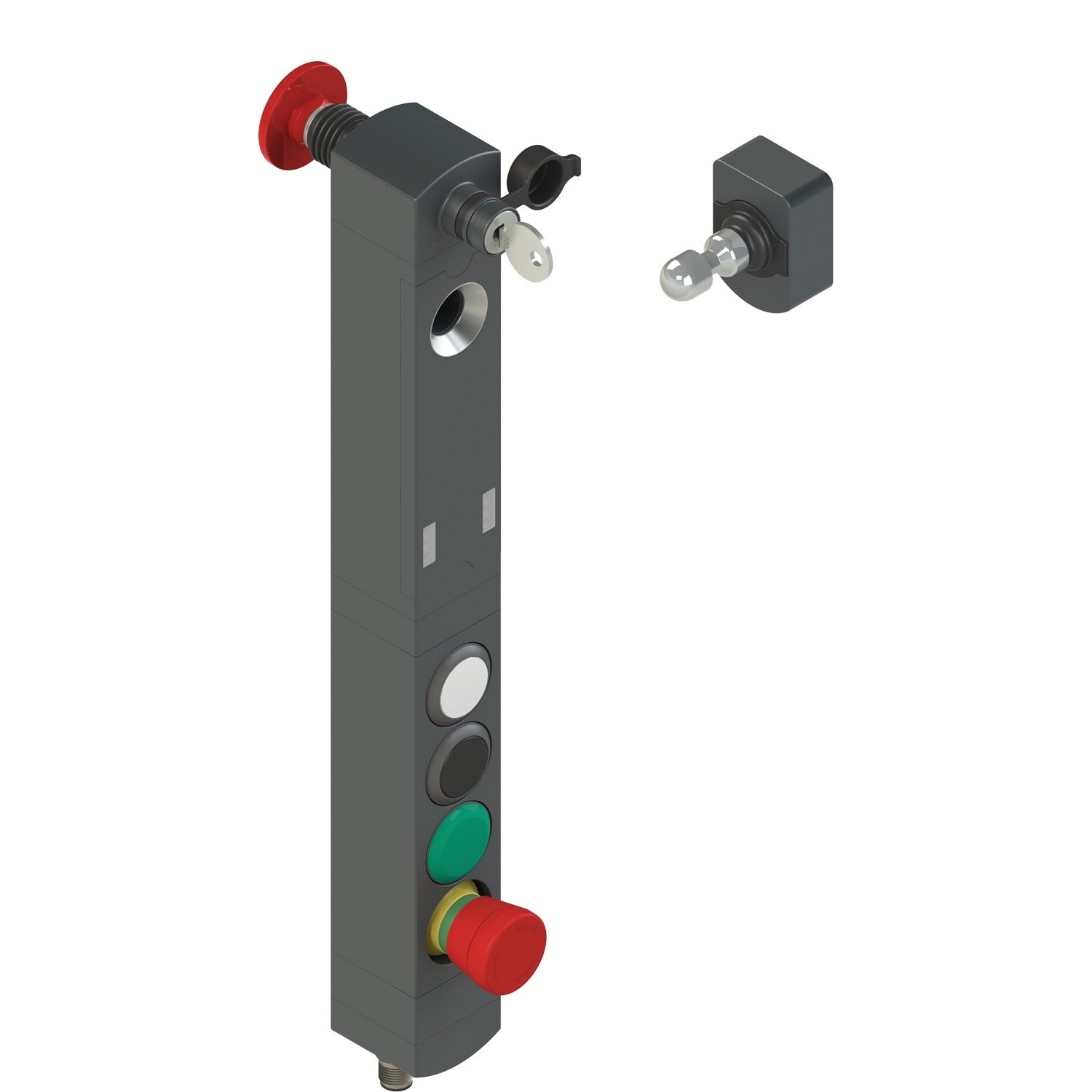

Pizzato NS D4SE1SRK-F41N006 NS series safety switch with lock and integrated control devices, with actuator

AKB000006817

Housing: Technopolymer housing
Working method: D working method, locked actuator with de-energized solenoid
Mode 1: OS safety outputs active with locked protection
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
2 solenoid activation inputs IE1-IE2,
1 programming / reset input I3
Output connection direction: Cable or connector at bottom
Actuator: Complete with actuator with high coding level VN NS-F41
Auxiliary release with variable orientation: Front key release and rear emergency pushbutton
Button configuration: 4 devices
Position 1: 1 pushbutton white 1NO
Position 2: 1 pushbutton black 1NO
Position 3: 1 green indicator light
Position 4: 1 red emergency pushbutton, turn to release, 2NC
Protection degree: IP65 according to EN 60529
Type of connection: Two M12 connectors (12-pole + 12-pole)
