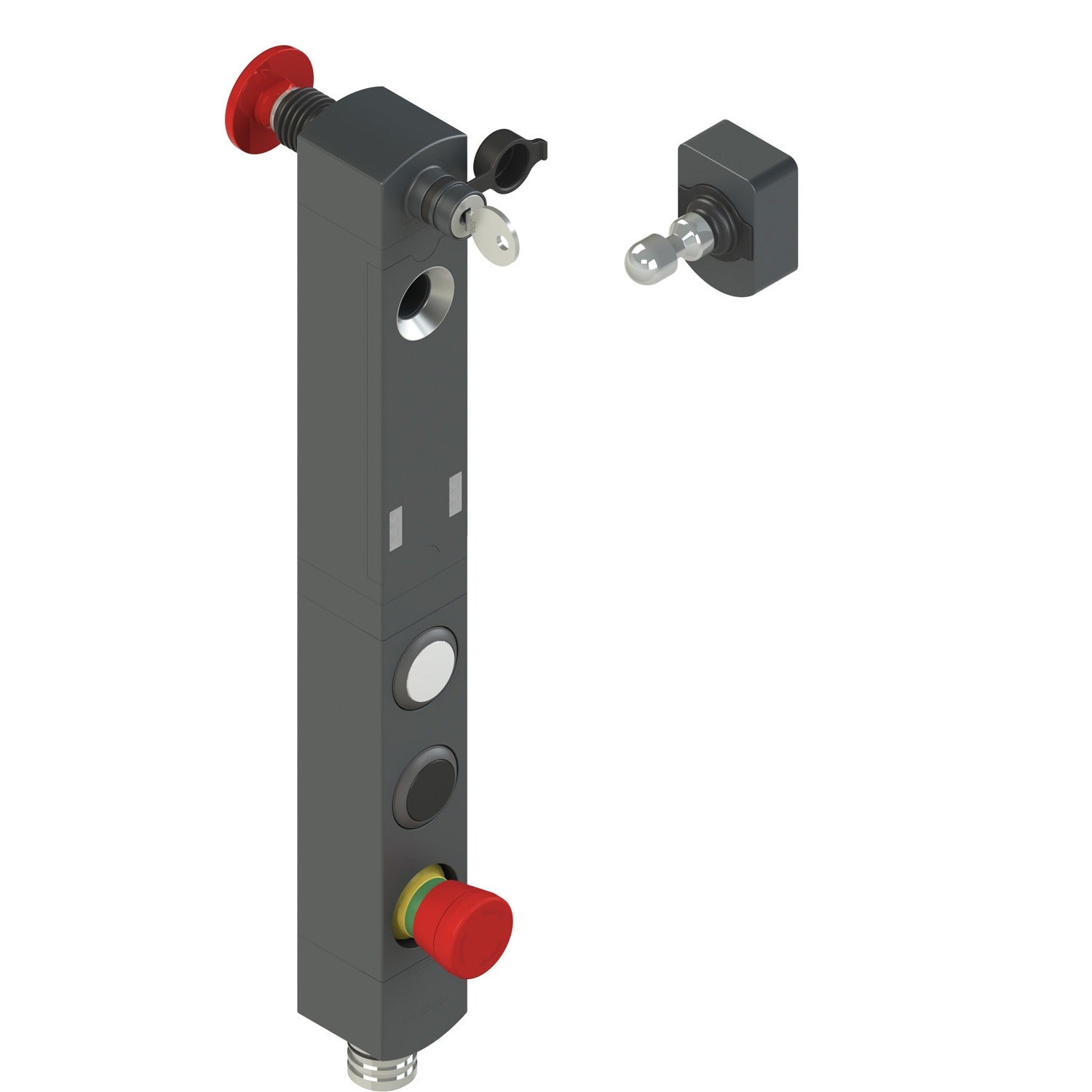

Pizzato NS D4SE1STK-F41N003 NS series safety switch with lock and integrated control devices, with actuator

AKB000006825

Housing: Technopolymer housing
Working method: D working method, locked actuator with de-energized solenoid
Mode 1: OS safety outputs active with locked protection
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
2 solenoid activation inputs IE1-IE2,
1 programming / reset input I3
Output connection direction: Cable or connector at bottom
Actuator: Complete with actuator with high coding level VN NS-F41
Auxiliary release with variable orientation: Front key release and rear emergency pushbutton
Protection degree: IP65 according to EN 60529
Button configuration: 3 devices
Position 1: 1 pushbutton white 1NO
Position 2: 1 pushbutton black 1NO
Position 3: 1 red emergency pushbutton, turn to release, 2NC
Type of connection: M23 connector, 19-pole
