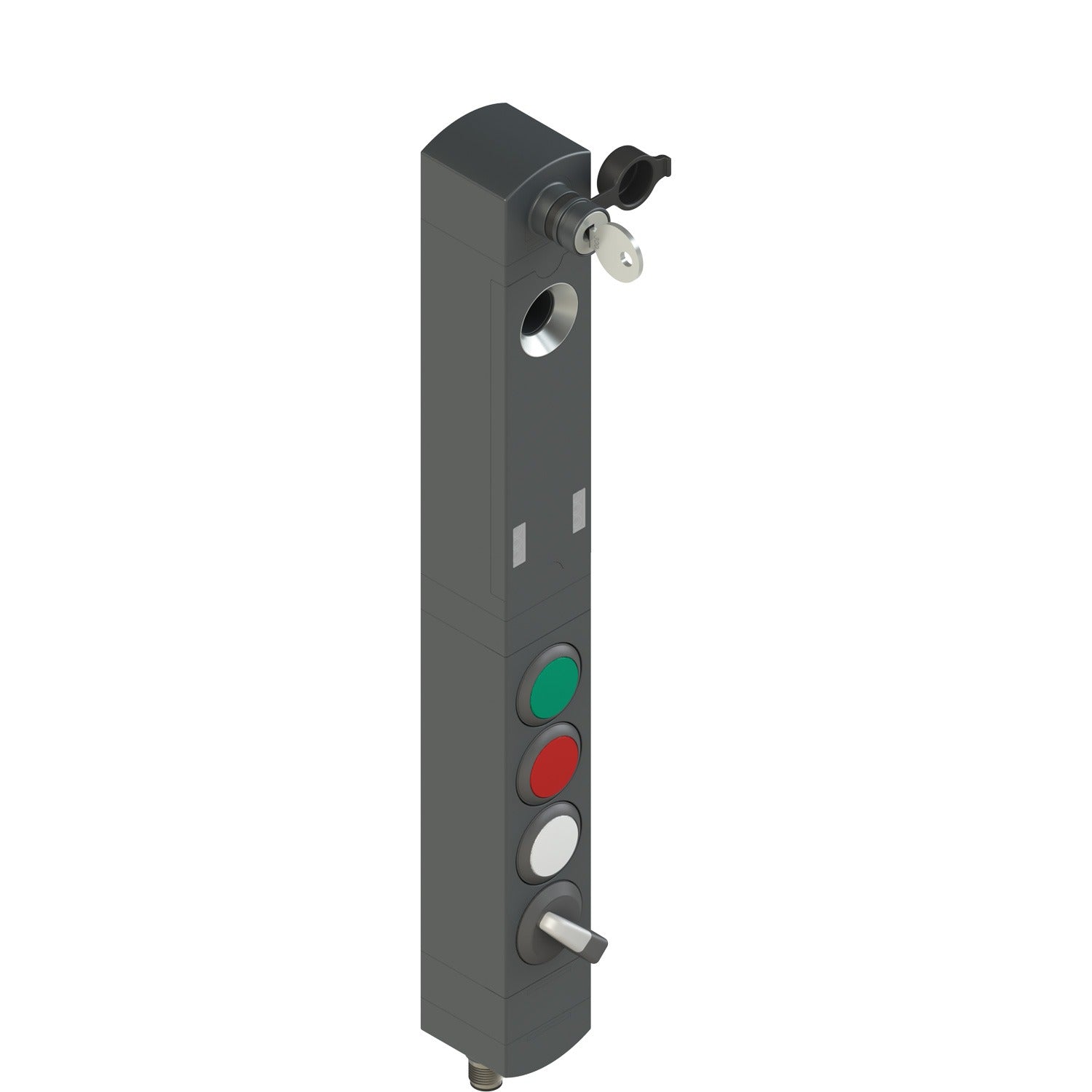

Pizzato NS D4ST1SRK-N004 NS series safety switch with lock and integrated control devices

AKB000006841

Housing: Technopolymer housing
Working method: D working method, locked actuator with de-energized solenoid
Mode 1: OS safety outputs active with locked protection
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
2 solenoid activation inputs IE1-IE2,
1 programming / reset input I3
Auxiliary release with variable orientation: Front key release
Output connection direction: Cable or connector at bottom
Actuator: Without actuator
Button configuration: 1. Position 1: 1 pushbutton green 1NO
2. Position 2: 1 pushbutton red 1NO
3. Position 3: 1 pushbutton white 1NO
4. Position 4: 2-position selector switch 1NO
Protection degree: IP65 according to EN 60529
Type of connection: Two M12 connectors (12-pole + 12-pole)
