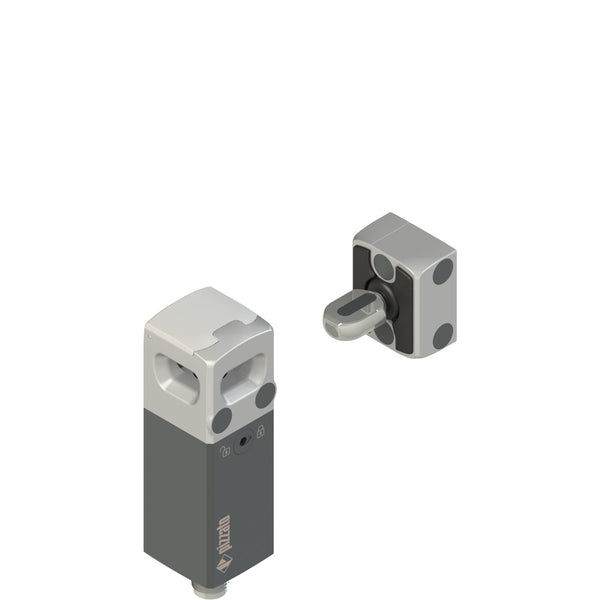

Pizzato NX B52AZ1SQK-F61 NX series RFID safety switch with lock

AKB000006733

Type of Operation Mode 1 of bistable solenoid. Activation of OS1 and OS2 with inserted and locked actuator.
Inputs and Outputs 2 safety inputs IS1, IS2
2 safety outputs OS1, OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 inputs for solenoid activation IE1, IE2
1 programming / reset input I3
1 feedback input EDM I5
Actuator Recognition Reprogrammable actuator
Auxiliary Release Release with hexagonal key at front
Type of Integrated Cable or Connector 8-pole connector, for series connection with Y connectors
Actuator Complete with actuator with high coding level VN NX-F61
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
Cover RGB-LED (illuminated) cover with multicolour signalling
