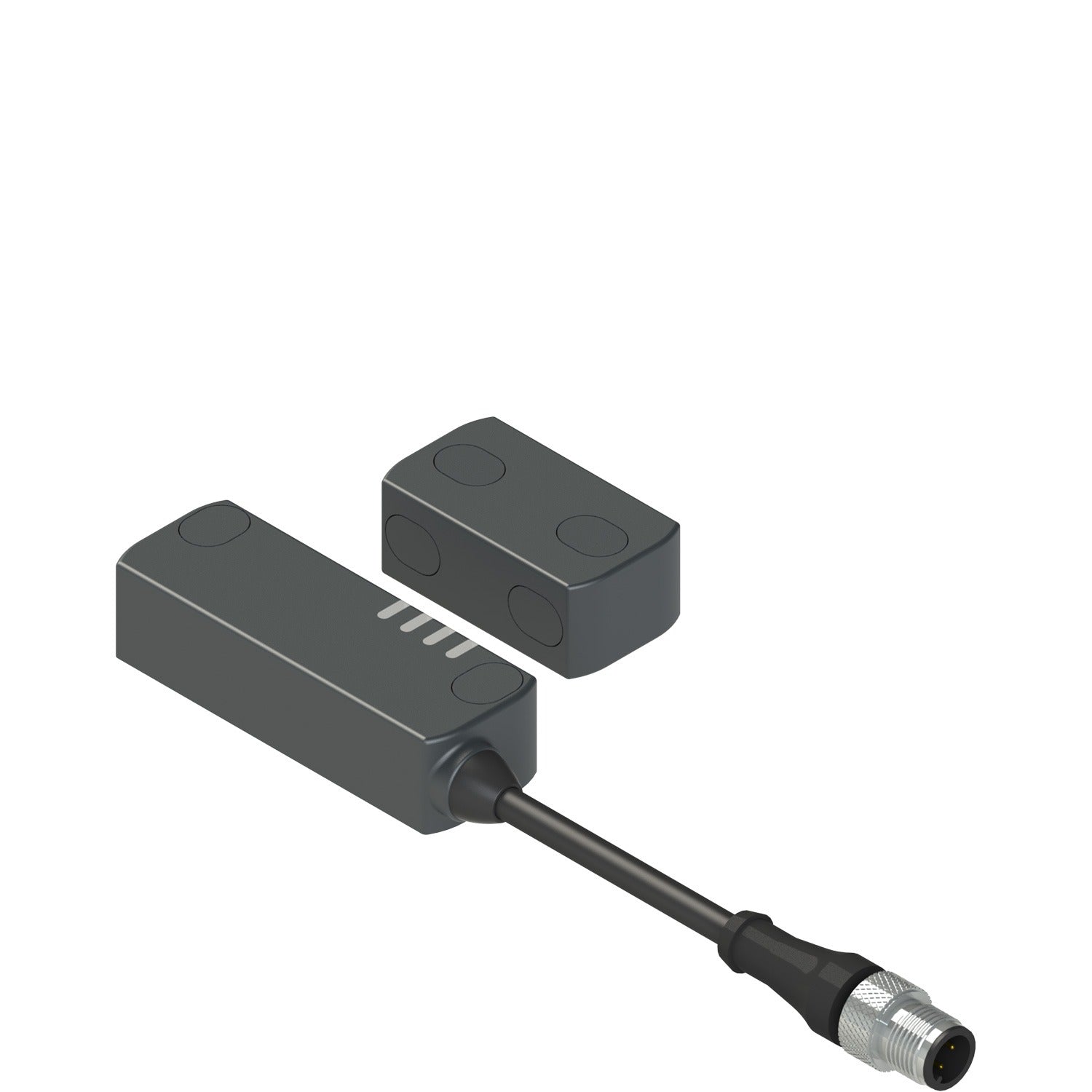

Pizzato ST DD420M0.1-D1T ST D series safety sensor

AKB000005886

Housing Technopolymer housing with output connection from right, ST D series
Inputs and outputs 2 safety inputs IS1-IS2, 2 safety outputs OS1-OS2, 1 signalling output O3, 1 programming input I3
Power 24 Vdc
Type of cable or connector PVC cable with M12 connector
Actuator coding level High coding level, all different actuators (1T)
Actuator actuation distance Actuation distance 12 mm
Actuator design Dimensions 45x25x18 mm, front and side fixing (D)
Ambient temperature From -25 to +70°C
Protection degree IP67 according to EN 60529 and IP69K according to ISO 20653
