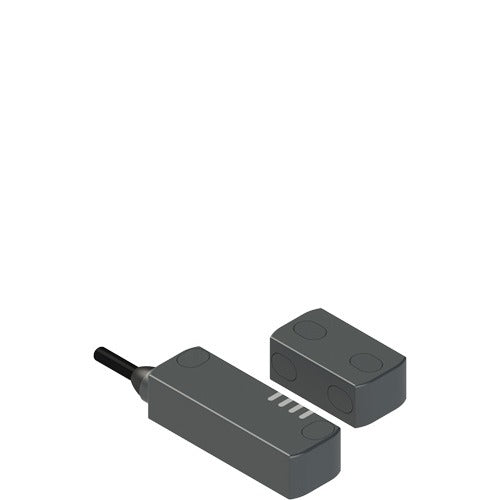

Pizzato ST DL210N2-D0T ST D series safety sensor

AKB000005927

Housing Technopolymer housing with output connection from left, ST D series
Inputs and outputs 2 safety outputs OS1-OS2, 1 signalling output O3
Power 24 Vdc
Type of cable or connector PVC cable
Actuator coding level Low coding level, actuators all the same (0T)
Actuator actuation distance Actuation distance 12 mm
Actuator design Dimensions 45x25x18 mm, front and side fixing (D)
Ambient temperature From -25 to +70°C
Protection degree IP67 according to EN 60529 and IP69K according to ISO 20653
