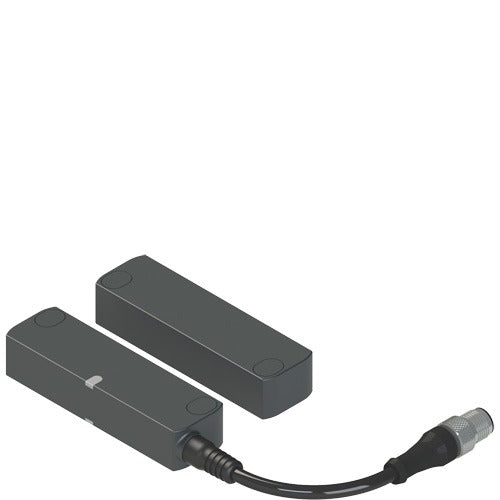

Pizzato ST HD211M0.2-H1T ST H series safety sensor

AKB000006033

Housing Technopolymer housing, ST H series
Inputs and Outputs 2 safety outputs OS1-OS2,
1 signalling output O3
Power 10 ... 30 Vdc
Type of Cable or Connector PVC cable with M12 connector
Actuator Coding Level High coding level, all different actuators (1T)
Actuator Actuation Distance Actuation distance 11 mm
Permanent Magnet Holding Force Without magnet
Actuator Design Dimensions 90x25x18 mm, lateral fixing (H)
Ambient Temperature From -25 to +70°C
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
