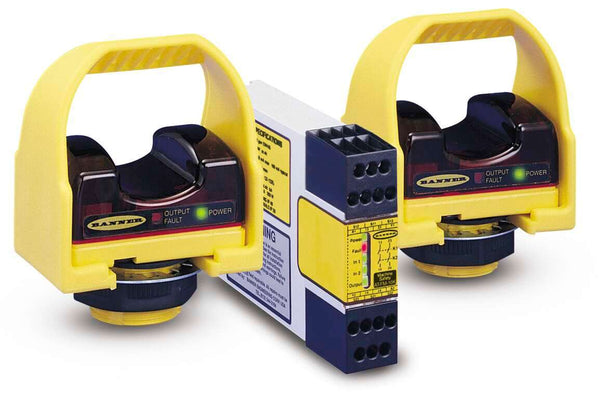

BANNER ATK-VP6Q Hand Control Safety Relays

PAP00012281

IP Rating: IP20
Power: AC/DC Universal
Device Type: Safety Relay
In-Series Diagnostics: No
Safety Module Type: Two-Hand Control Module
Expandable: No
LCD Display: No
Dimension (H x W x D in mm): 84 x 22.5 x 118
Relative Humidity: 90% @ 50° C
Max Operating Temperature (°C): 50
Input Operation: Simultaneous <= 500 ms (500 ms typical)
Number of Safe Inputs: 1
Input Configuration: 2 x complementary (contact or PNP)
Safety Input - Dual Channel (Dry Contact): 25 mA @ 24 V dc (1 NO / 1 NC per channel)
