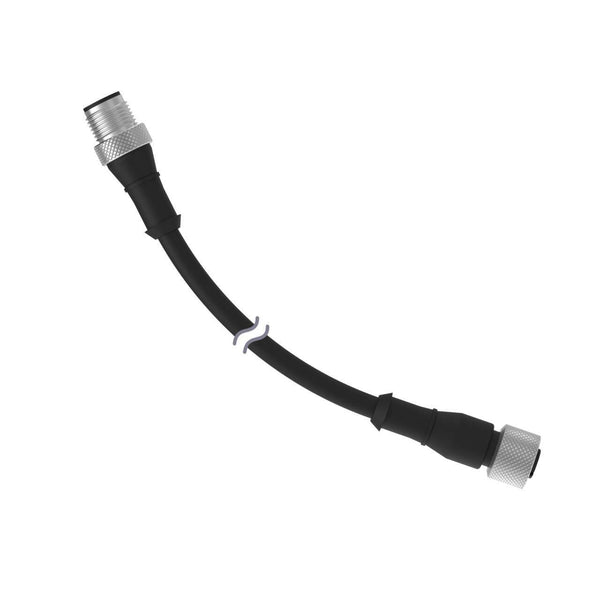

BANNER BC-M12F4-M12M4-22-15 Double-Ended Cordsets

Write a review
Rs. 0.00

Attribute Specification
Connector 1 Type M12
Connector 2 Type M12
Number of Ends Double Ended
Coupling Nut Material Nickel Plated Brass
Connector 1 Number of Contacts 4
Connector 2 Number of Contacts 4
Cable Jacket Color Black
Cable Jacket Material PVC
Cordset Length Range (m) Greater than 20.00
Connector 2 Orientation Straight
Minimum Temp. (Celsius) -40
Overmold Material and Color PUR Black
Shield/No Shield No Shield
Maximum Temp. (Celsius) 70
Voltage Rating (V) 30 V ac/dc
Current Rating (A) 4.0
Feature: Hazardous Area No
