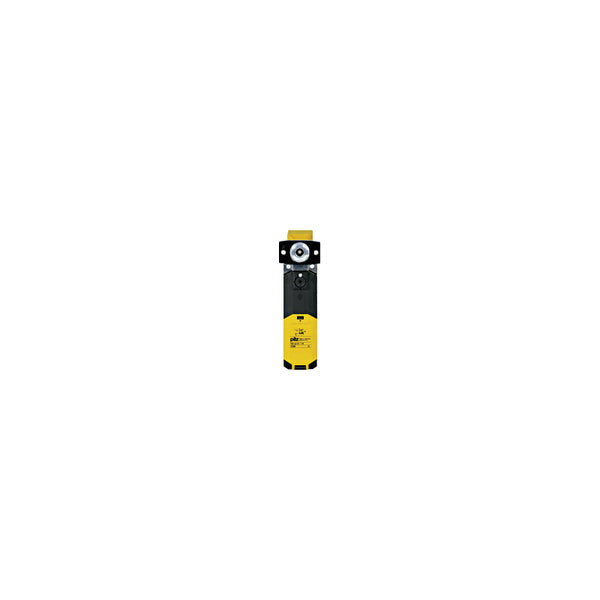

PILZ PSEN me1.21S / 1AR

SUA00001306

Technical Data

Electrical Data
Supply Voltage (V) 110 V
Type of Supply Voltage U1 AC
Power Consumption AC 8 VA
Supply Voltage 2 (V) 230 V
Type of Supply Voltage U2 AC
Relay Outputs
Utilisation Cat. AC15/DC13 Sta. EN 60947-5-1
Voltage AC15 Safety Cont. 230 V
Max. Current AC15 Safety Cont. 2.5 A
Environmental Data
Ambient Temperature -25 - 70 °C
Protection Type, Housing -
Mechanical Data
Holding Force 1500 N
Connection Terminal Spring-loaded Terminal
Height Dimension 184 mm
Width Dimension 42.5 mm
Depth Dimension 51 mm
Net Weight 337 g
Gross Weight 515 g
