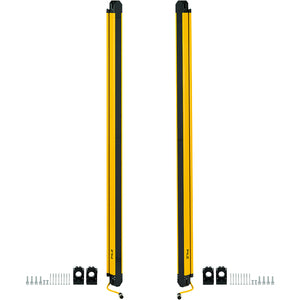

PILZ PSEN opII4H-s-30-075

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Optical Data
Used Wavelength Range850 nm
Semiconductor Outputs
Number of OSSD Outputs2
Environmental Data
Ambient Temperature-25 - 60 Ā°C
Humidity Rating95 % r.h. at 50 Ā°C
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to StandardIEC 61496-1
Vibration to StandardEN 60068-2-6
Bracket for Shock Standard 1Adv Bracket Kit
Acc. Shock to Standard 140g
Bracket for Shock Standard 2Adv Bracket Kit
Acc. Shock to Standard 250g
Bracket for Shock Standard 3Swivel-Mount
Protection Type, Housing(Not Specified)
Times
Reaction Time7.8 ms
Mechanical Data
Bend Radius (When Laying) K15 x Ƙ
Max. Cable Length50 m
Housing MaterialAluminium
Material End CapsZn
Material Front ScreenPC
Height Dimension754 mm
Width Dimension35 mm
Depth Dimension40 mm
Net Weight2225 g
Gross Weight3910 g
