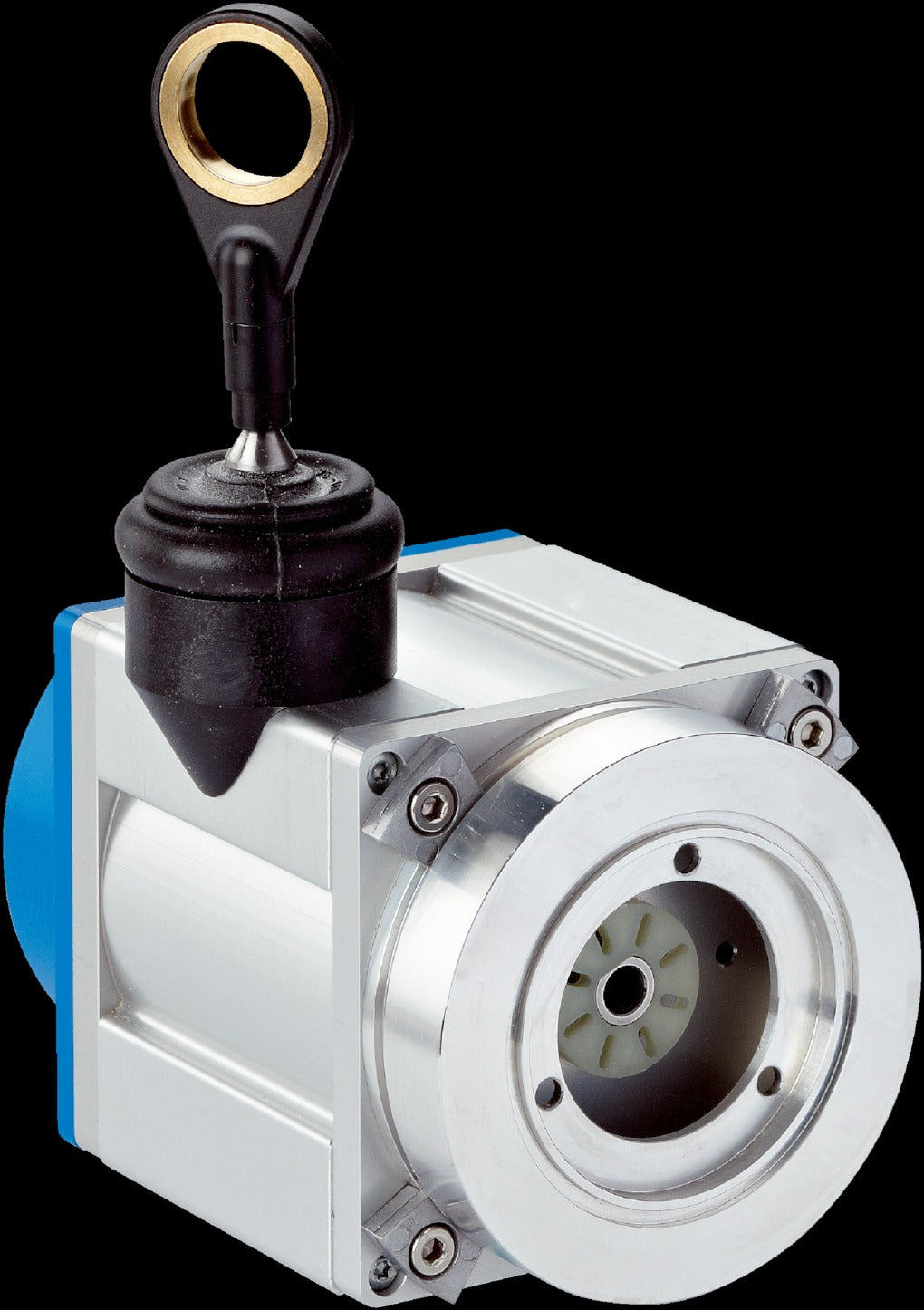

SICK Accessories: Further accessories MRA-F080-103D2

SAS00005329

Accessory group Wire draw mechanism
Description HighLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 3 m
Items supplied Without encoder
Measurement range 0 m ... 3 m
Reproducibility ≤ 1 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 2 mm
Weight 1.5 kg (Wire draw mechanism)
Weight (measuring wire) 7.1 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Material, spring housing Die-cast zinc
Housing material, wire draw mechanism Aluminum (anodized), aluminum die cast (nickel-plated)
Length of wire pulled out per revolution 200 mm
Actual wire draw length 3.2 m
Spring return force 6 N ... 14 N
Measuring wire diameter 1.35 mm
Wire acceleration 40 m/s²
Operating speed 8 m/s
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP64
Life of wire draw mechanism Typ. 1,000,000 cycles
