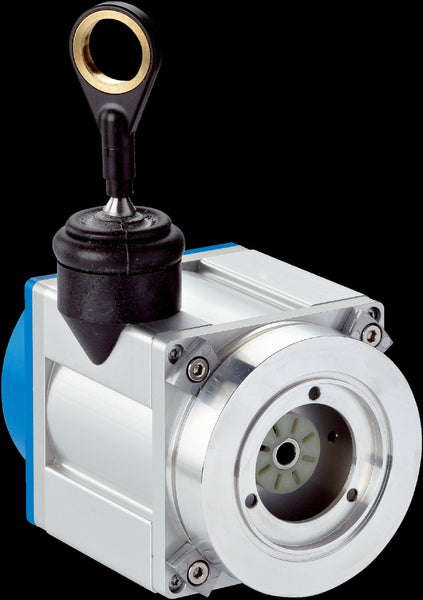

SICK Accessories: Further accessories MRA-F130-105D2

SAS00005318

Accessory group Wire draw mechanism
Description HighLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 5 m
Items supplied Without encoder
Measurement range 0 m ... 5 m
Reproducibility ≤ 1 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 2 mm
Weight 2.8 kg (Wire draw mechanism)
Weight (measuring wire) 7.1 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Material, spring housing Plastic
Housing material, wire draw mechanism Aluminum (anodized), plastic
Length of wire pulled out per revolution 334.1 mm
Actual wire draw length 5.2 m
Spring return force 15 N ... 20 N
Measuring wire diameter 1.35 mm
Wire acceleration 70 m/s²
Operating speed 8 m/s
Resolution To calculate the resolution of the system, use the following formula:
length of wire draw per revolution / steps per revolution = resolution of the combination of wire draw + encoder
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP64
Life of wire draw mechanism Typ. 1,000,000 cycles
