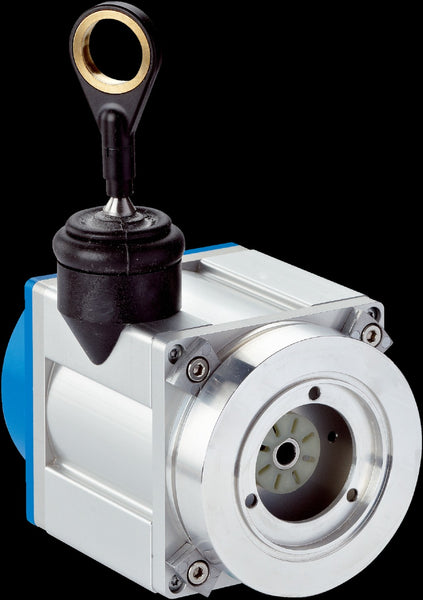

SICK Accessories: Further accessories MRA-F130-130D1

SAS00005334

Accessory group Wire draw mechanism
Description HighLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 30 m
Measurement range 0 m ... 30 m
Reproducibility ≤ 2 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 5 mm
Weight 6.2 kg (Wire draw mechanism)
Weight (measuring wire) 2.6 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Material, spring housing Plastic
Housing material, wire draw mechanism Aluminum (anodised), plastic
Length of wire pulled out per revolution 332.4 mm
Actual wire draw length 30.2 m
Spring return force 10 N ... 20 N
Measuring wire diameter 0.81 mm
Wire acceleration 15 m/s²
Operating speed 6 m/s
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP64
Life of wire draw mechanism Typ. 1,000,000 cycles
