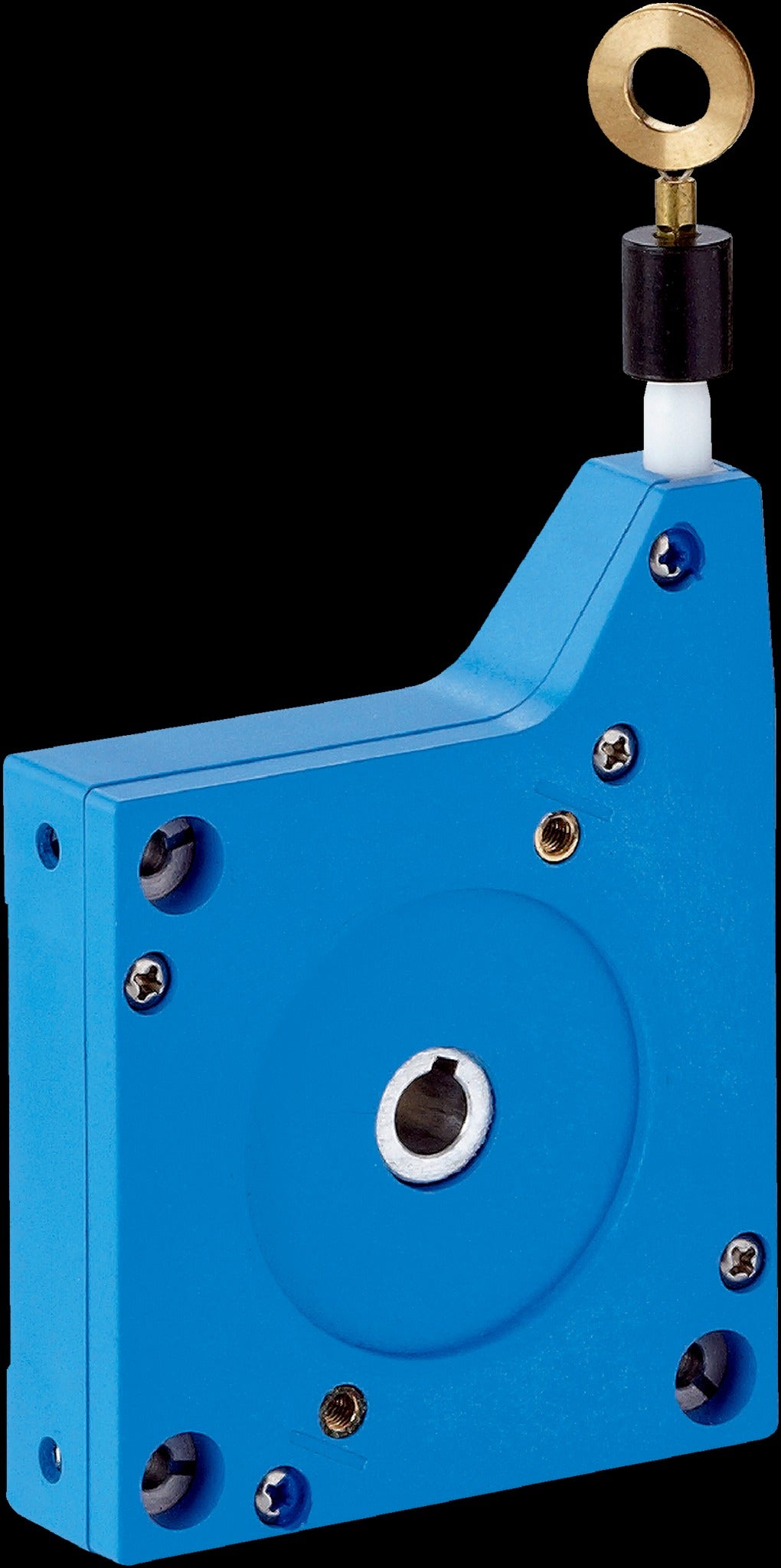

SICK Accessories: Further accessories MRA-G055-101D4

SAS00005319

Accessory group Wire draw mechanism
Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 1.25 m
Items supplied Without encoder, 2 x fixing clamp (0061W01-00:21), 2 x fixing screw (DIN912-M3x6), 1 x Woodruff key DIN 6888 2x2.6
Measurement range 0 m ... 1.25 m
Reproducibility ≤ 0.2 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 0.4 mm
Weight 80 g (Wire draw mechanism)
Weight (measuring wire) 0.58 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed
Housing material Plastic, Noryl
Housing material, wire draw mechanism Plastic, Noryl
Length of wire pulled out per revolution 150 mm
Actual wire draw length 1.45 m
Spring return force 1 N ... 1.4 N
Measuring wire diameter 0.45 mm
Wire acceleration 10 m/s²
Operating speed 6 m/s
Resolution To calculate the resolution of the system, use the following formula:
length of wire draw per revolution / steps per revolution = resolution of the combination of wire draw + encoder
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP50
Life of wire draw mechanism Typ. 1,000,000 cycles
