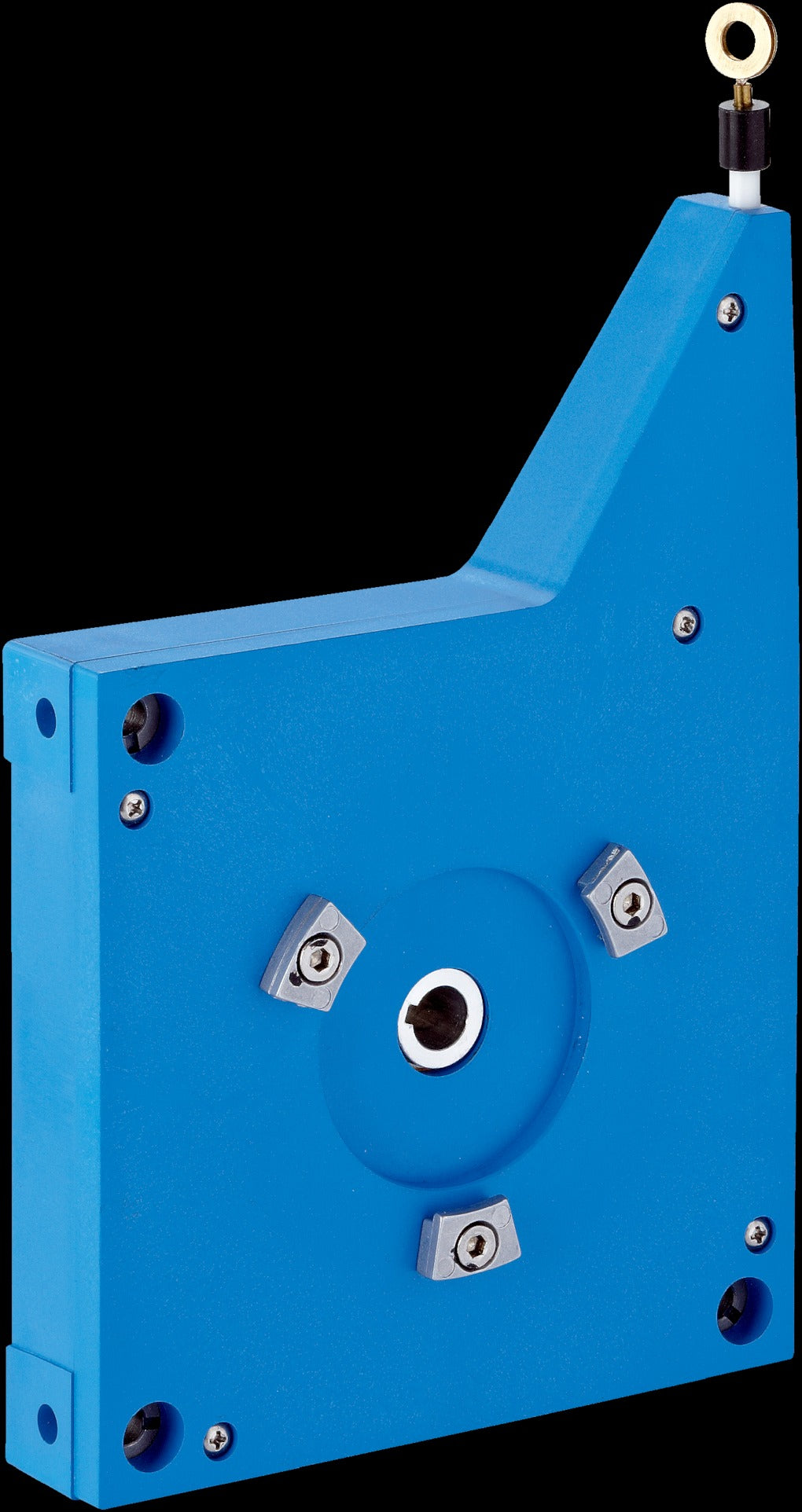

SICK Accessories: Further accessories MRA-G130-105D3

SAS00005326

Accessory group Wire draw mechanism
Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 5 m
Items supplied Without encoder
Measurement range 0 m ... 5 m
Reproducibility ≤ 0.2 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 0.4 mm
Weight 800 g (Wire draw mechanism)
Weight (measuring wire) 1.2 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Housing material Plastic, Noryl
Housing material, wire draw mechanism Plastic, Noryl
Length of wire pulled out per revolution 385 mm
Actual wire draw length 5.2 m
Spring return force 4.5 N ... 7 N
Measuring wire diameter 0.55 mm
Wire acceleration 4 m/s²
Operating speed 3 m/s
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP50
Life of wire draw mechanism Typ. 1,000,000 cycles
