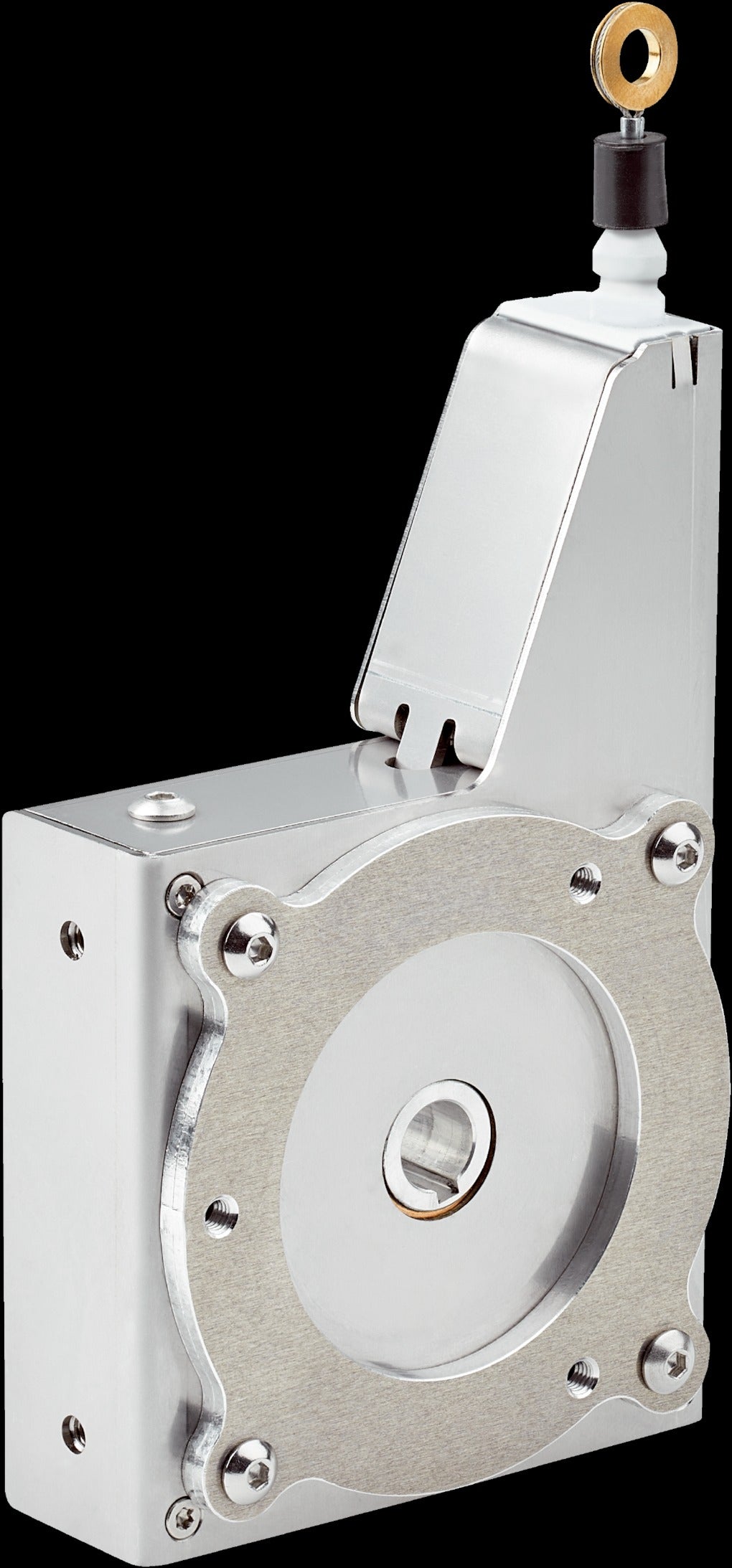

SICK Accessories: Further accessories MRA-V080-103D3

SAS00005332

Accessory group Wire draw mechanism
Description VarioLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 3 m
Measurement range 0 m ... 3 m
Reproducibility ≤ 0.5 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 1.2 mm
Weight Approx. 0.6 kg (Wire draw mechanism)
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Housing material Stainless steel (1.4301)
Housing material, wire draw mechanism Stainless steel 1.4301
Length of wire pulled out per revolution 230 mm
Actual wire draw length 3.2 m
Spring return force 8 N ... 10 N
Measuring wire diameter 0.81 mm
Wire acceleration 4 m/s²
Operating speed 4 m/s
Ambient operating temperature –30 °C ... +70 °C
Enclosure rating mechanic IP60
Life of wire draw mechanism Typ. 1,000,000 cycles
