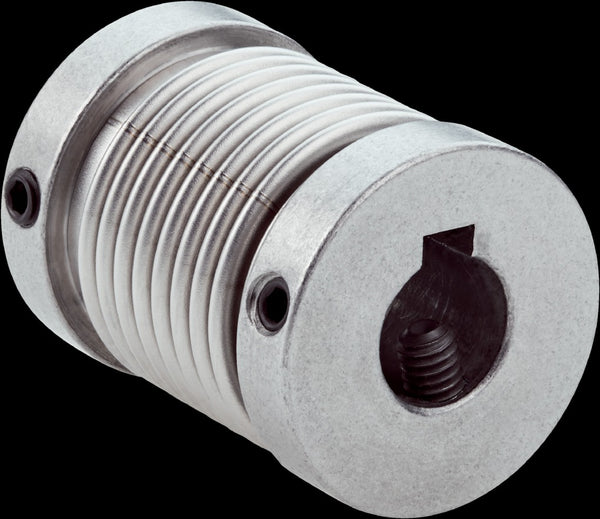

SICK Accessories: Mounting systems KUP-0606-BJ

SAS00004905

Accessory group Shaft adaptation
Accessory family Shaft couplings
Description Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45 mm, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key
Specialty Shaft features emergency running properties. In the event of bellows coupling fracture, the claw coupling inside enables emergency rotation of the coupling. Coupling must be replaced as soon as possible after fracture. Torsion spring stiffness of 183 Nm/rad, radial spring stiffness of 17.8 N/mm, moment of inertia 9.1 gcm², shaft insertion depth: min: 6 mm max: 11 mm, hubs with feather keyways DIN6885 3/4 mm
