SICK Accessories: Mounting systems KUP-0606-BS

SAS00004945

Accessory group Shaft adaptation
Accessory family Shaft couplings

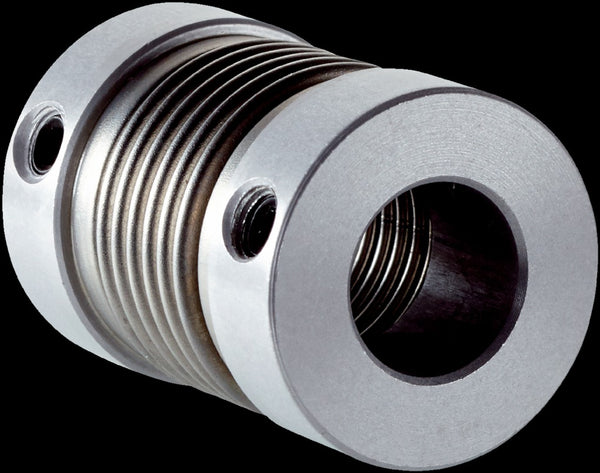

Description Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30 °C ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each
Maximum shaft offset Radial ± 0.25 mm, Axial ± 0.4 mm, Angular ± 4°
Maximum speed 10,000 rpm
Temperature range –30 °C to +120 °C
Maximum torque 120 Ncm
Material Stainless steel bellows, fixed with two setscrews each
