SICK Accessories: Mounting systems KUP-0610-D

SAS00004955

Accessory group Shaft adaptation
Accessory family Shaft couplings

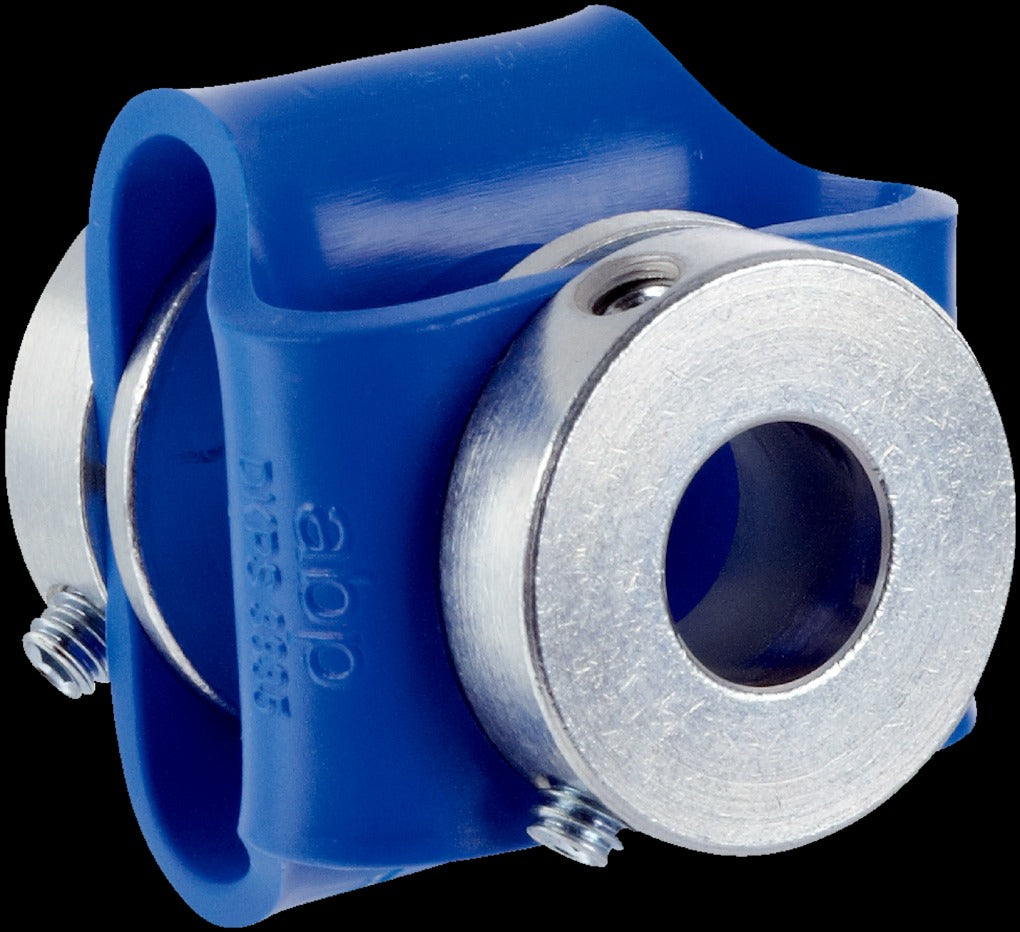

Description Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2.5 mm, axially +/- 3 mm, angle +/- 10 degrees; max. speed 3,000 rpm, –30° to +80° Celsius, torsional spring stiffness of 25 Nm/rad
Specialty Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80° C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
