SICK Accessories: Mounting systems KUP-0808-S

SAS00004965

Accessory group Shaft adaptation
Accessory family Shaft couplings

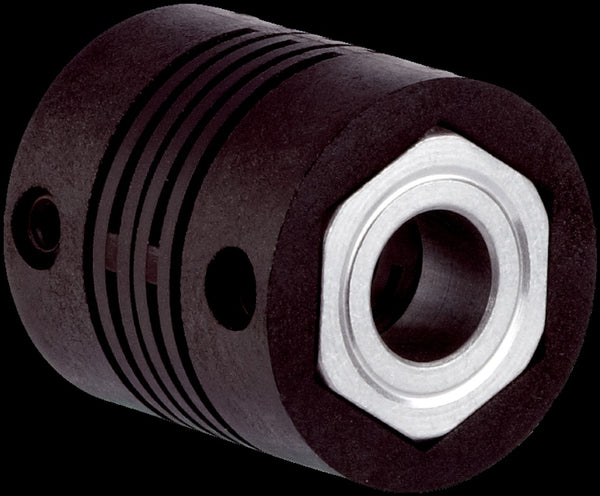

Description Bar coupling, shaft diameter 8 mm / 8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub
Specialty Maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angular ± 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub
