SICK Accessories: Reflectors and optics PL560DG-H

SAS00004725

Accessory group Reflectors
Accessory family Angular

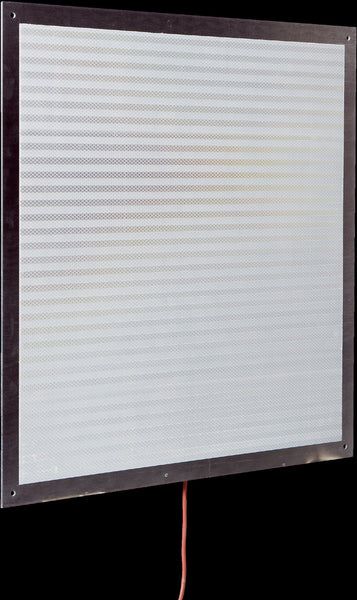

Description Reflector plate, “Diamond Grade” reflective tape, baseplate: 665 mm x 665 mm, heated, external fuse protection: 6 A (provided by customer)
Mounting system type Screw-on, 4 hole mounting
Ambient operating temperature –40 °C ... +55 °C
Storage temperature –40 °C ... +55 °C
Dimensions 605 mm x 605 mm
Material Base plate: Aluminum (anodised)
Supply voltage 90 V AC ... 280 V AC
Power consumption 900 W
Connections 2 m silicone cable, 3 x 0.75 mm2, flexible cable, open end with ferrules, minimum bend radius: 51 mm at room temperature
Enclosure rating IPx4 (EN 60529)
Weight 7.32 kg
