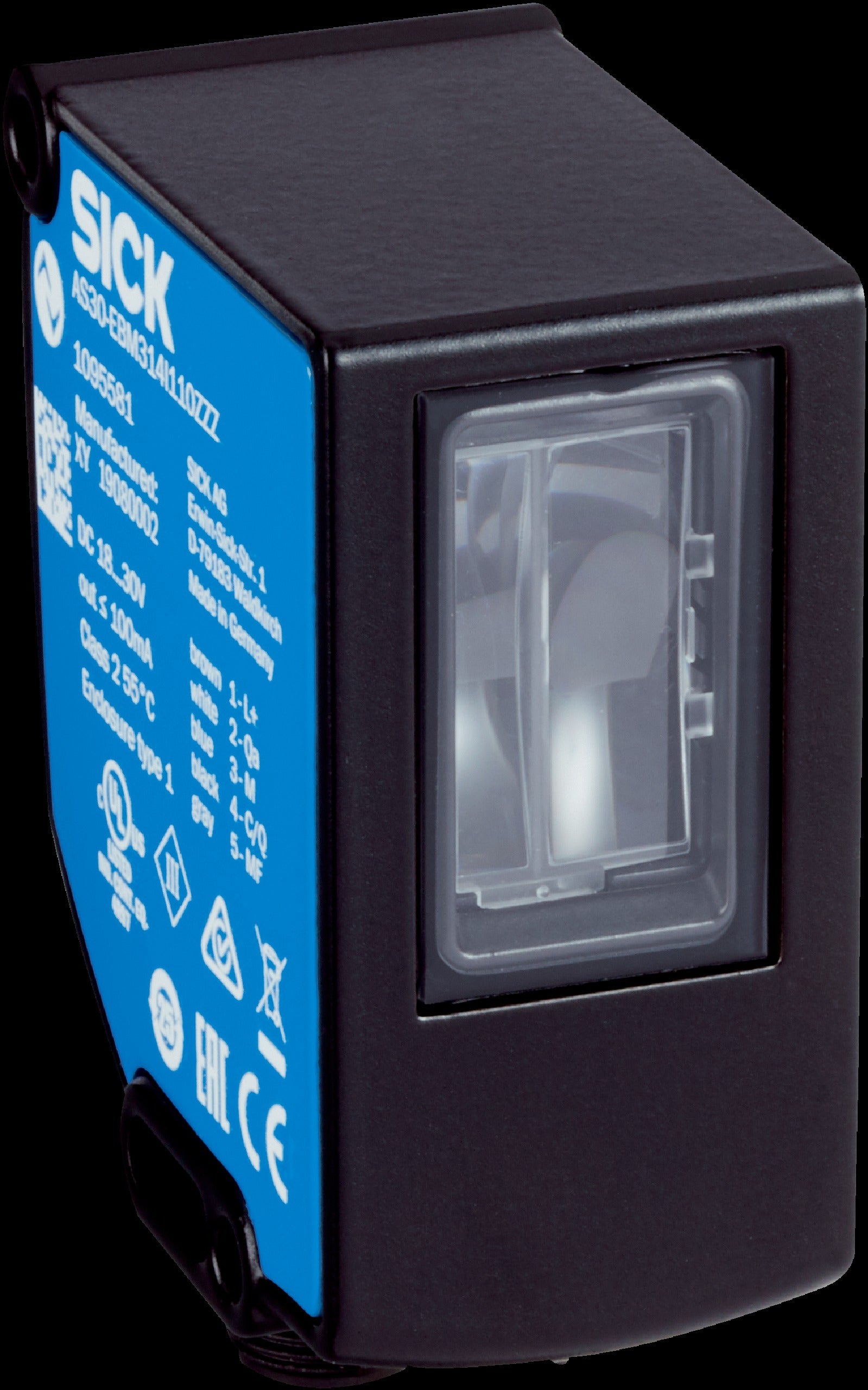

SICK Array sensors: AS30 AS30-EBM434I110ZZZ

IMM00002056

Sensor principle: Proximity system
Functional principle: Web guiding, positioning
Principle of operation (default): Web guiding
Dimensions (W x H x D): 31 mm x 62 mm x 52.2 mm
Sensing distance: ≤ 100 mm
Housing design: Rectangular
Working range: 90 mm ... 110 mm
Measurement range: 45 mm
Minimum detectable object (MDO): 1.2 mm
Light source: LED, White
Wave length: 400 nm ... 700 nm
Light spot size: 62.4 mm x 12.8 mm
Repeatability: 0.2 mm1)
Linearity (position value): ± 2 %
Resolution: 0.1 mm
Adjustment: IO-Link, Display
Teach-in mode: Edge detection, Area detection
