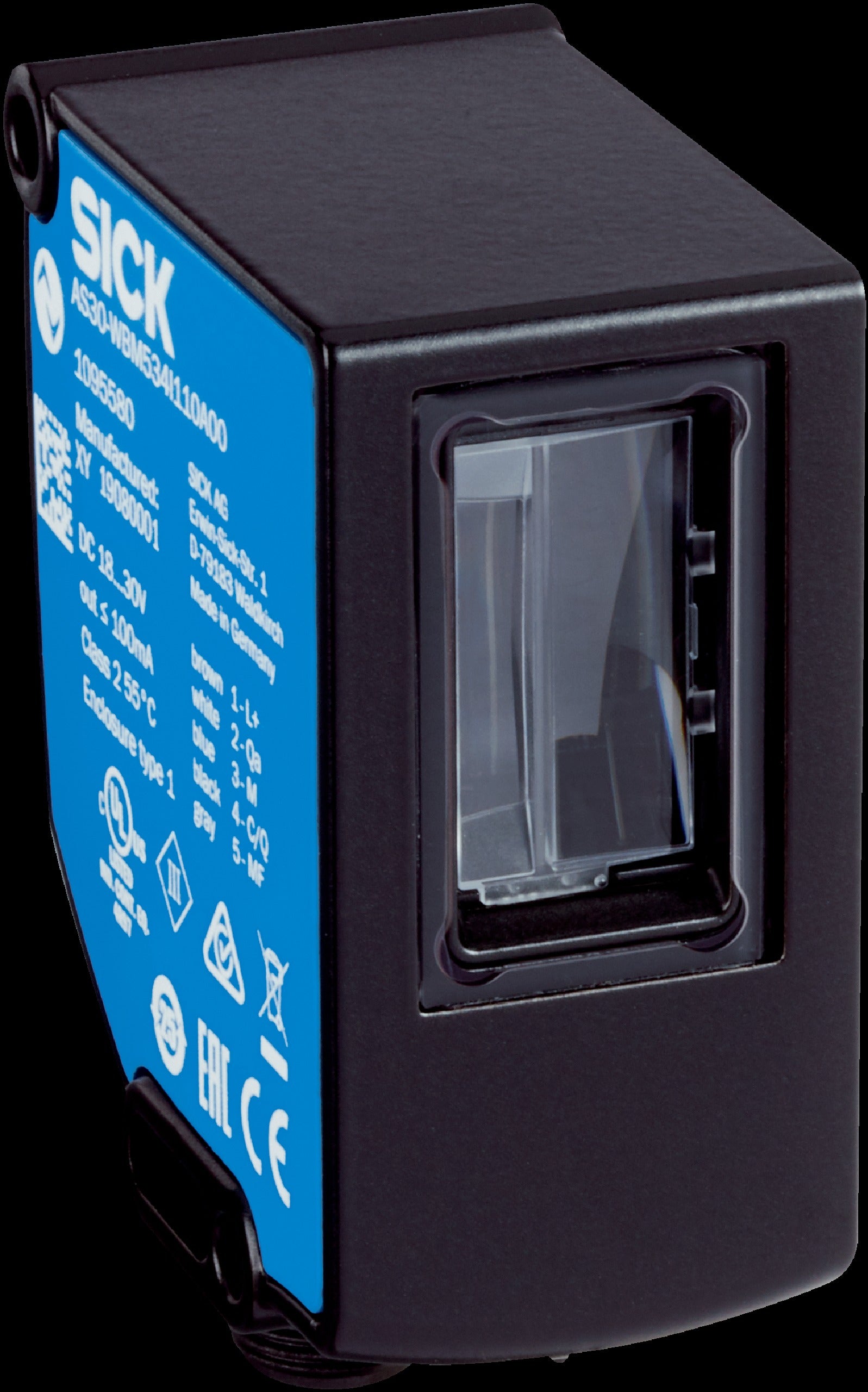

SICK Array sensors: AS30 AS30-WBM314I220C00

IMM00002054

Sensor principle: Proximity system, Reflector mode
Functional principle: Web guiding, positioning, Width measurement, Center point measurement
Principle of operation (default): Width measurement
Dimensions (W x H x D): 31 mm x 62 mm x 52.2 mm
Sensing distance: ≤ 25 mm
Housing design: Rectangular
Working range: 20 mm ... 30 mm
Measurement range: 20 mm
Minimum detectable object (MDO): 0.2 mm
Light source: LED, White
Wave length: 400 nm ... 700 nm
Light spot size: 38.9 mm x 11.1 mm
Repeatability: 0.03 mm1)
Linearity (position value): ± 2 %
Resolution: 1 µm
Adjustment: IO-Link, Display
Teach-in mode: Edge detection, Area detection
