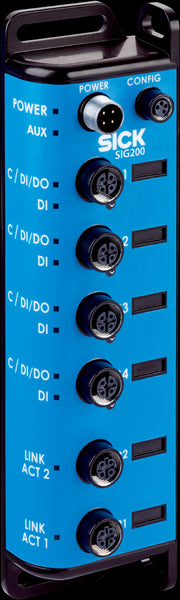

SICK Integration products: SIG200 SIG200-0A0G12200

SAS00005681

Further functions
  • Web server integrated
  • USB connection for easy configuration of the SIG200 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICK
  • Logic editor is available for easy configuration of logic functions
Items supplied
  • SIG200-0A0G12200
  • 4x blind plugs (M12) on port S2, S3, S4, P2
  • 1x blind plug (M8) on port CONFIG
  • Marking labels
  • Quickstart
Connections
  • IO-Link: 4 x M12, 5-pin female connector, A-coded
  • Power: 1 x M12, 4-pin plug, A-coded
  • CONFIG: 1 x M8, 4-pin female connector, USB 2.0 (USB-A)
  • Ethernet: 2 x M12, 4-pin female connector, D-coded
Power voltage supply Supply voltage: 10 V DC ... 30 V DC
Current consumption ≤ 175 mA (At supply voltage 24 V DC)
≤ 3,000 mA
