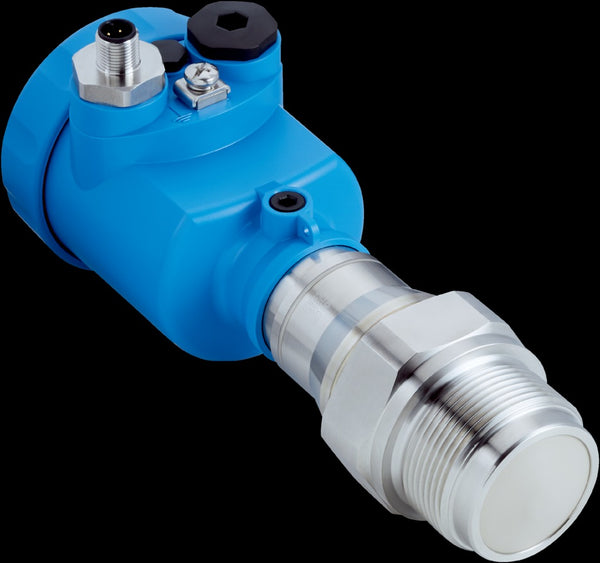

SICK Level sensors: LBR SicWave LBR-ARUTCB2HAAX

SAS00006850

Medium Bulk solids
Measurement Continuous
Probe type Thread with integrated horn antenna made from PEEK
Frequency band W-band (within 75 … 85 GHz)
Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
Angle of dispersion 7° 1)
Process pressure –1 bar ... 20 bar (-100 kPa ... 2,000 kPa / –14.5 psig ... 290.1 psig)
Process temperature –40 °C ... +200 °C
ATEX approval ATEX II 1D, 1/2D, 1/3D, 2D Ex ta, ta/tb, ta/tc, tb IIIC T* Da, Da/Db, Da/Dc, Db
Type examination KIWA 20ATEX0041 X
RoHS certificate ✔
HART ✔
Indication Installed
Control element Pushbutton operation
