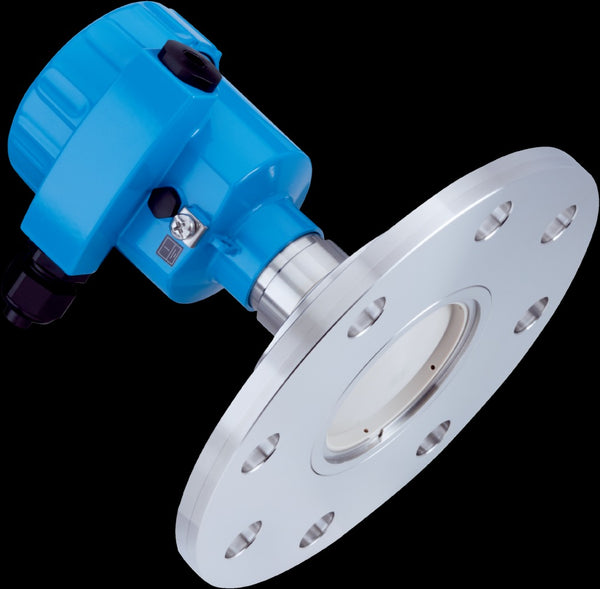

SICK Level sensors: LBR SicWave LBR-XXCSAAMHKAX

SAS00006811

Medium Bulk solids
Measurement Continuous
Probe type Metal jacketed lens antenna / PEEK / c/w air purge connection
Frequency band W-band (within 75 … 85 GHz)
Measuring range Up to 120 m (393.7 ft), recommended measuring range in thread version with integrated horn antenna up to 20 m (65.62 ft)
Angle of dispersion 4° 1)
Process pressure –1 bar ... 3 bar (-100 kPa ... 300 kPa / –14.5 psig ... 43.5 psig)
Process temperature –40 °C ... +130 °C
RoHS certificate ✔
HART ✔
Indication Installed
