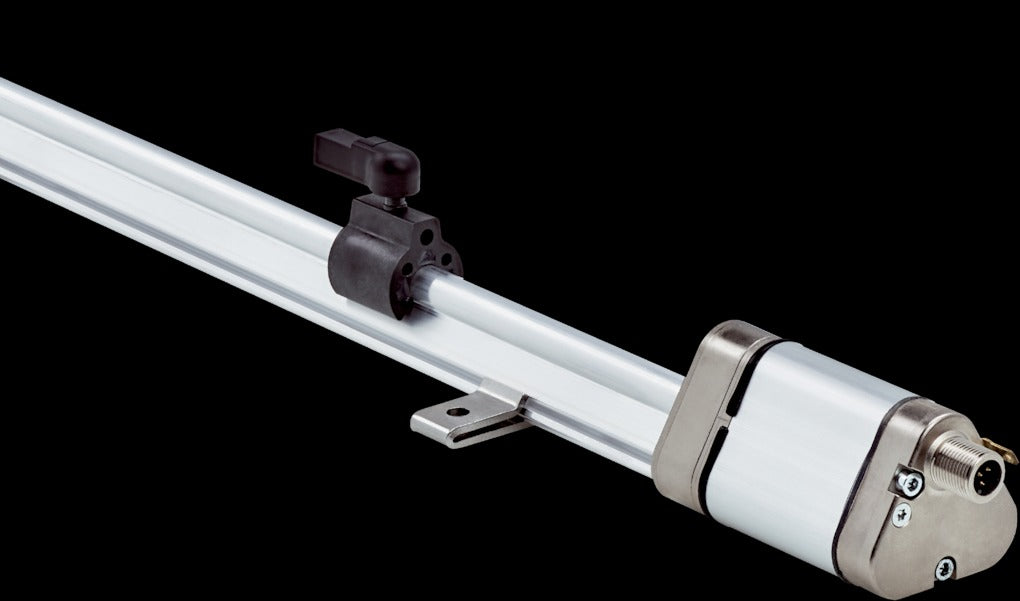

SICK Linear encoders: DAX DAXSAN-0150CA0G0900E00

SAS00013525

Connection type Male connector, M12, 8-pin
PIN assignment 1 = Output signal ground (0 V PIN 3); 2 = Output signal ground (0 V PIN 5); 3 = Signal 2; 4 = n.c.; 5 = Signal 1; 6 = Power ground; 7 = +24 V DC; 8 = n.c.
Male connector coding A-coded
Supply voltage 24 V DC (± 20%)
Current consumption 50…100 mA
Reverse polarity protection Up to −30 V DC
Residual ripple ≤ 0.28 Vpp
Dielectric strength 500 V DC, 0 V against housing
Over voltage protection ≤ 36 V DC
