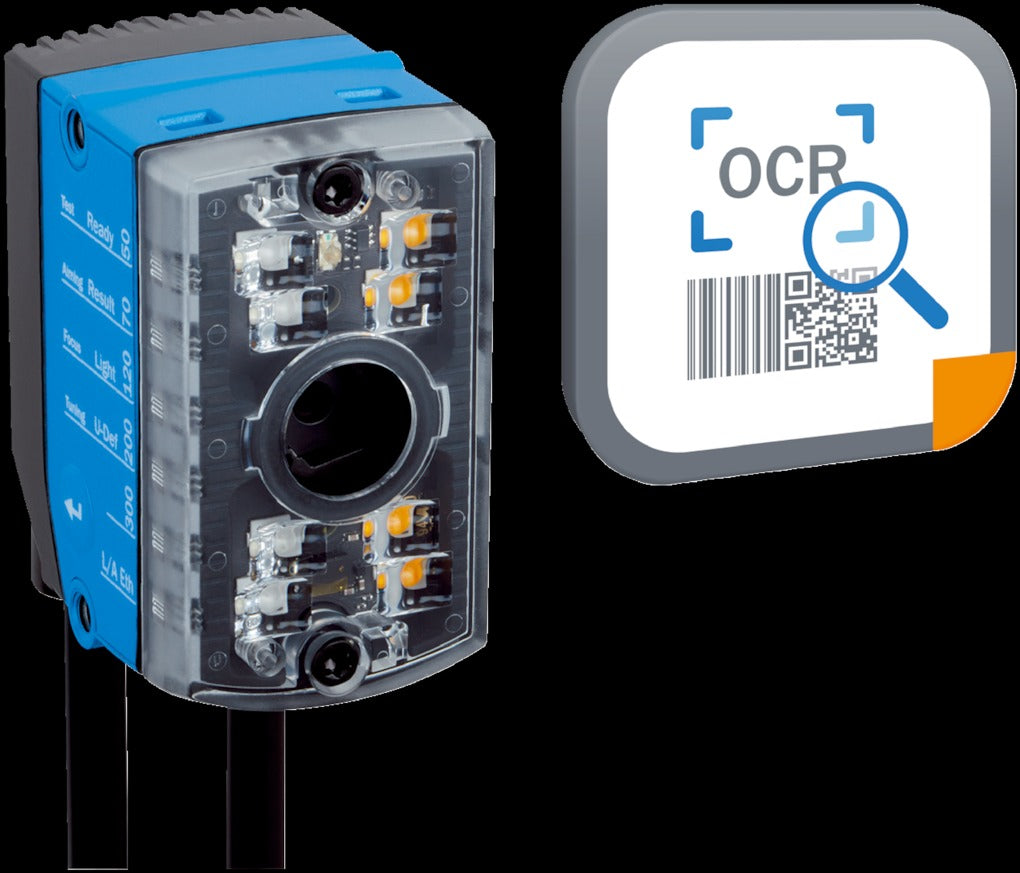

SICK Quality control systems: Label Checker LBC611-12AB

SAS00005526

Technology 2D snapshot
Light source
  • Internal lighting: LED, visible amber light, 617 nm, ± 50 nm
  • Internal lighting: LED, visible blue light, 470 nm, ± 15 nm
  • Feedback spot: LED, visible green light, 525 nm, ± 15 nm
  • Adjustment aid: Laser, visible red light, 630 nm, ± 15 nm
Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014)
Focus Adjustable focus (manually)
Sensor CMOS matrix sensor, grayscale values, 1.3 Mpixel, 1,280 px x 960 px
Spectral range Approx. 400 nm ... 900 nm
Focal length 12 mm
