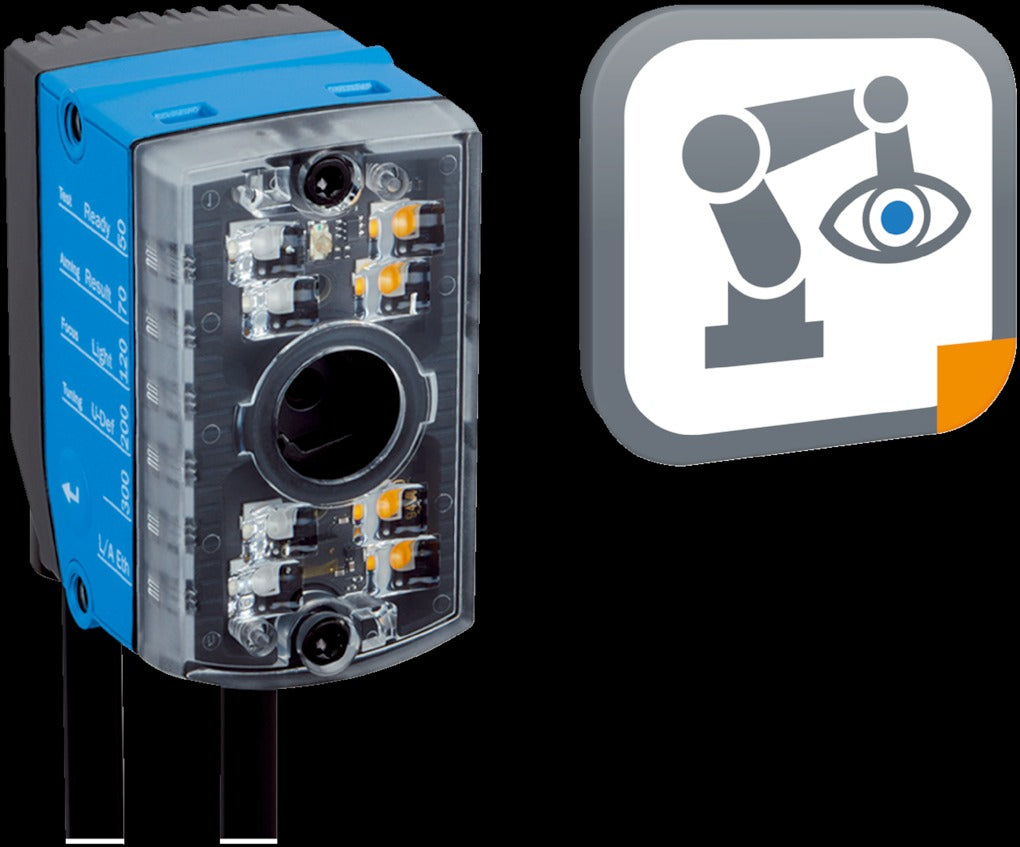

SICK Robot guidance systems: PLOC2D PLOC2D-611-6NIR

SAS00005532

Applications Robot guidance
Positioning
Identifying
System features Stand-alone sensor with easy teach, for localization of parts using 2D measurements
Example field of view For details see field of view diagram
Working range 50 mm ... 300 mm
Light source Internal lighting
Infrared LED, invisible, 850 nm, ± 15 nm
Feedback spot: LED, visible green light, 525 nm, ± 15 nm
Adjustment aid: Laser, visible red light, 630 nm, ± 15 nm
Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
LED class Risk group 0
Localization principle Shape comparison
Sensor resolution 1,280 px x 960 px (1.2 Mpixel)
Lens Focal length: 6 mm
Technology 2D snapshot, image analysis
Description Medium resolution 2D localization of parts in medium/large fields of view at medium/long reading distances
